Toyota BLADE — STEERING WHEEL

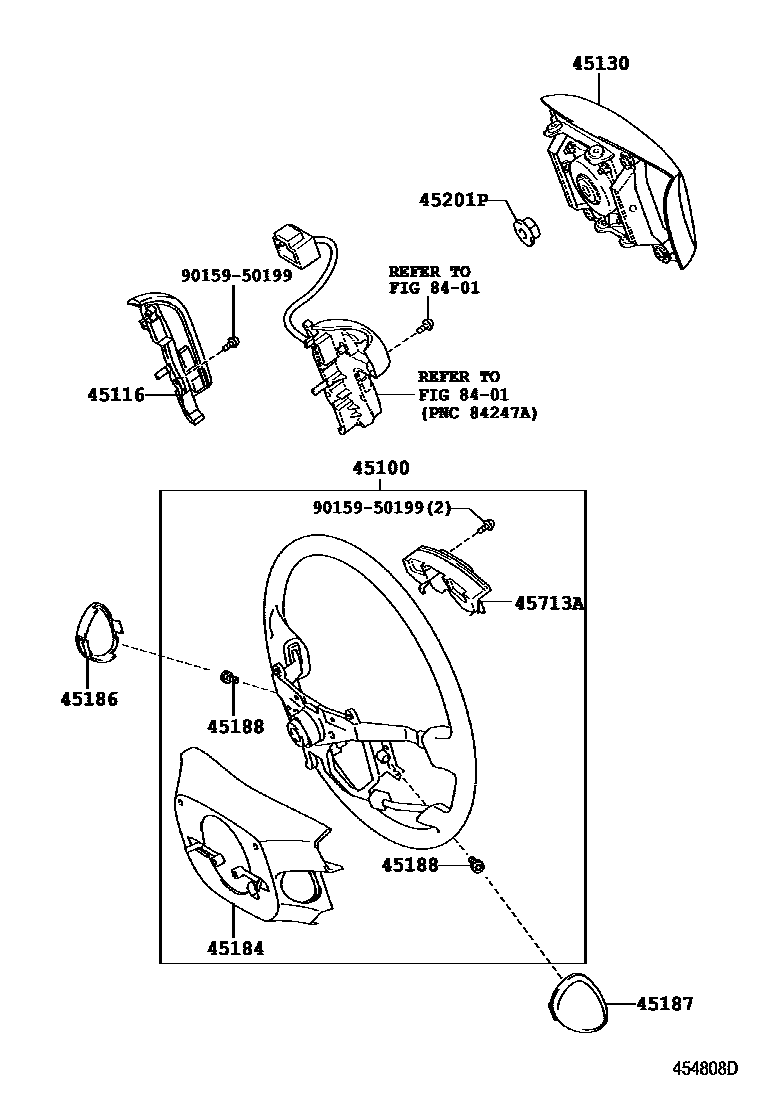

Parts diagram

45100WHEEL ASSY, STEERING

main45100-12D90-J0i200612-200912

main45100-12E20-J0i200708-200912

main45100-12F20-J2i200912-201204

main45100-12F30-J2i200912-201204

main45100-12E60-J0i200810-200912

main45100-12E70-J0i200810-200912

main45100-12F10-J2i200912-201204

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-12010i200612-200912

main45116-12030i200708-200912

main45116-12080i200912

45130BUTTON ASSY, HORN

main45130-12B60-J0i200612-200912

DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#

main45130-12B80-J0i200708-200912

DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#

main45130-12C40-J1i200912-201204

main45130-12C70-J2i200912-201204

DK.BLUE,TRIM0#,8#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-12350-J0i200708-200912

DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#

main45184-33100-J0i200612-200912

DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#

main45184-75010-J2i200912-201204

DK.BLUE,TRIM0#,8#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-22070-J2i200912-201204

DK.BLUE,TRIM0#,8#

main45186-33080-J0i200612-200912

DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#

main45186-12010-J0supersedes 45186-12020-J0i200708-200912

main45186-42030-J2i200912-201204

main45186-42040-J2supersedes 45186-42030-J2i200912-201204

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-12020-J0i200708-200912

DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#

main45187-33050-J0i200612-200912

DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#

main45187-42020-J2i200912-201204

main45187-75010-J2i200912-201204

DK.BLUE,TRIM0#,8#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200612-200912

45201PNUT, STEERING WHEEL SET

main90179-12071i200612-200912

45713ADAMPER, STEERING SHAKE

main45713-12130i200912

main45713-12140i200912

main45713-33180i200612-200912

main45713-53020i200708-200912

main45713-12110i200912

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

11 parts on this diagram · 5 diagrams in section

STEERING WHEEL for Toyota BLADE

This section contains 13 genuine Toyota parts for the STEERING WHEEL system of the Toyota BLADE. Key components include: WHEEL ASSY, STEERING, ORNAMENT, STEERING WHEEL, NO.1, BUTTON ASSY, HORN, COVER, STEERING WHEEL BOSS, LOWER, COVER, STEERING WHEEL, LOWER NO.2.
