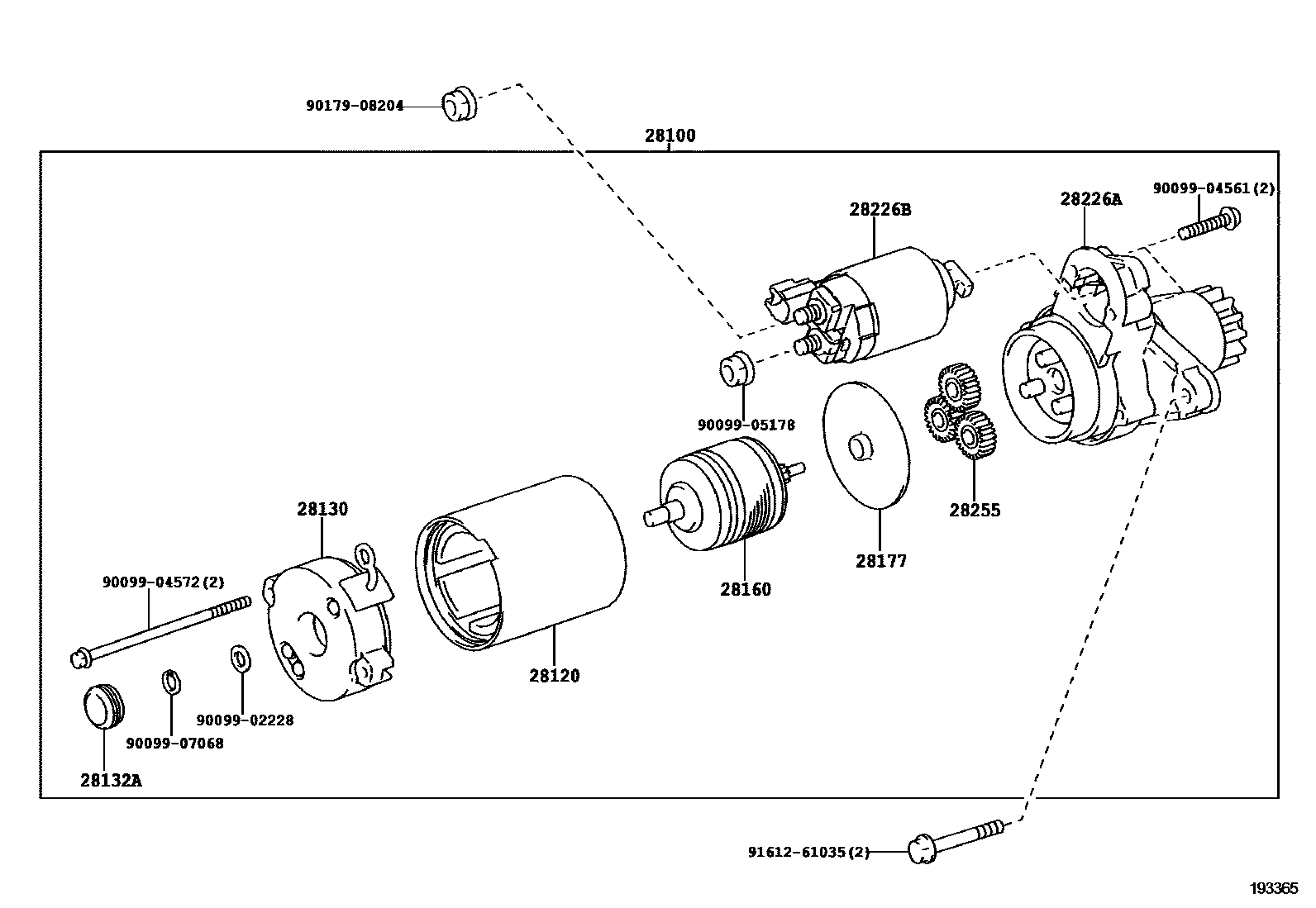

Toyota BLADE — STARTER
28100STARTER ASSY
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28132ACOVER, STARTER COMMUTATOR END FRAME
28160ARMATURE ASSY, STARTER
28177PLATE(FOR STARTER ARMATURE)
28226ASTARTER KIT, MOTOR TERMINAL
28226BSTARTER KIT, REPAIR SERVICE
28255GEAR, PLANET
9009902228
main90099-02228
9009904561
main90099-04561
9009904572
main90099-04572
9009905178
main90099-05178
9009907068
main90099-07068
9017908204
main90179-08204
9161261035
main91612-61035
16 parts on this diagram · 1 diagram in section
STARTER for Toyota BLADE
This section contains 16 genuine Toyota parts for the STARTER system of the Toyota BLADE. Key components include: STARTER ASSY, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END, COVER, STARTER COMMUTATOR END FRAME, ARMATURE ASSY, STARTER.
