Toyota BLADE — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#
DK.BLUE & SILVER,TRIM0#,8#
DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33560UNIT ASSY, SHIFT LOCK CONTROL
35906WIRE SUB-ASSY, INDICATOR LAMP
35970FHOUSING ASSY, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
9017908247
main90179-08247
12 parts on this diagram · 4 diagrams in section

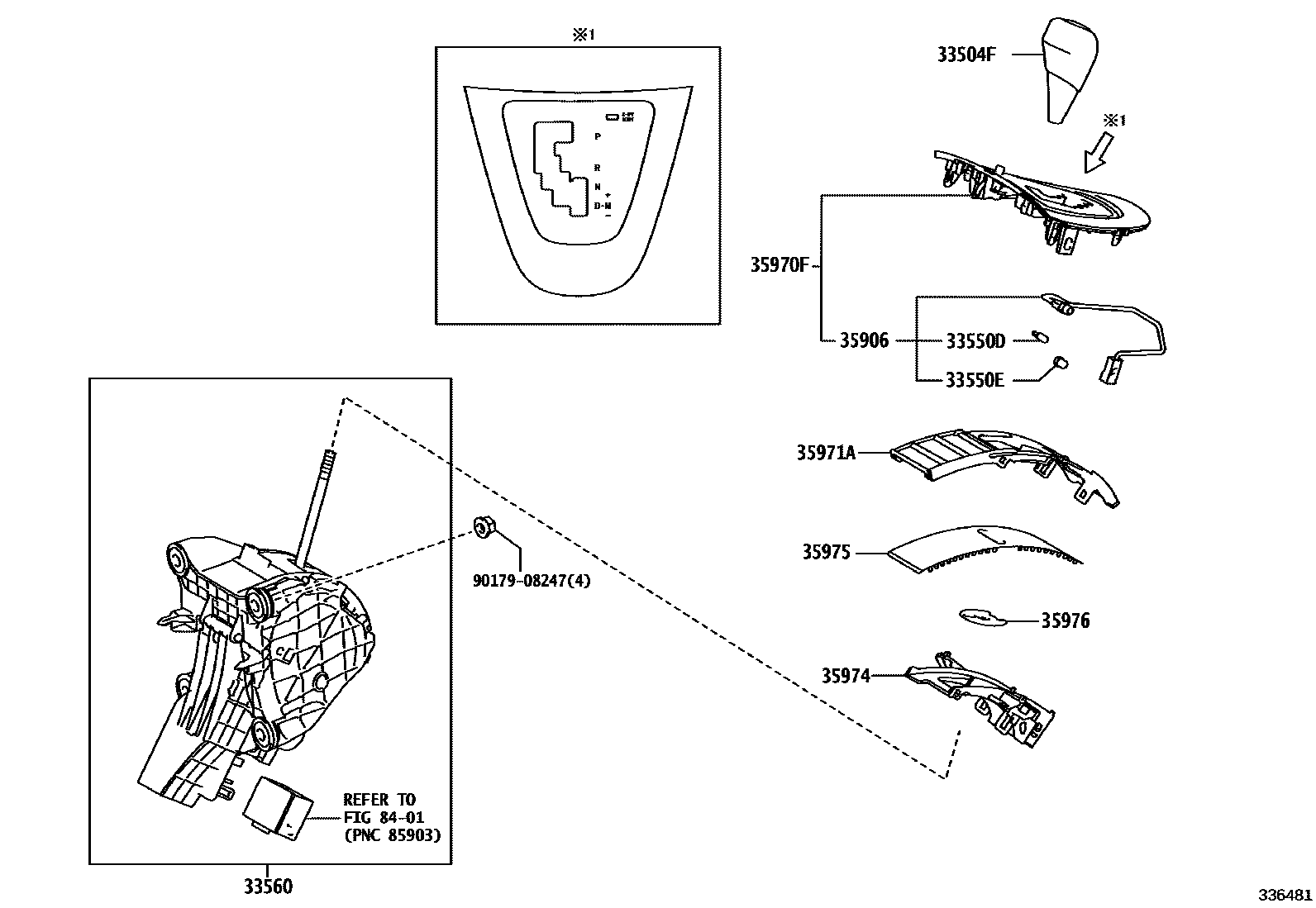

SHIFT LEVER & RETAINER for Toyota BLADE
This section contains 22 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota BLADE. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL, CABLE ASSY, TRANSMISSION CONTROL.
