Toyota BLADE — REAR MOULDING

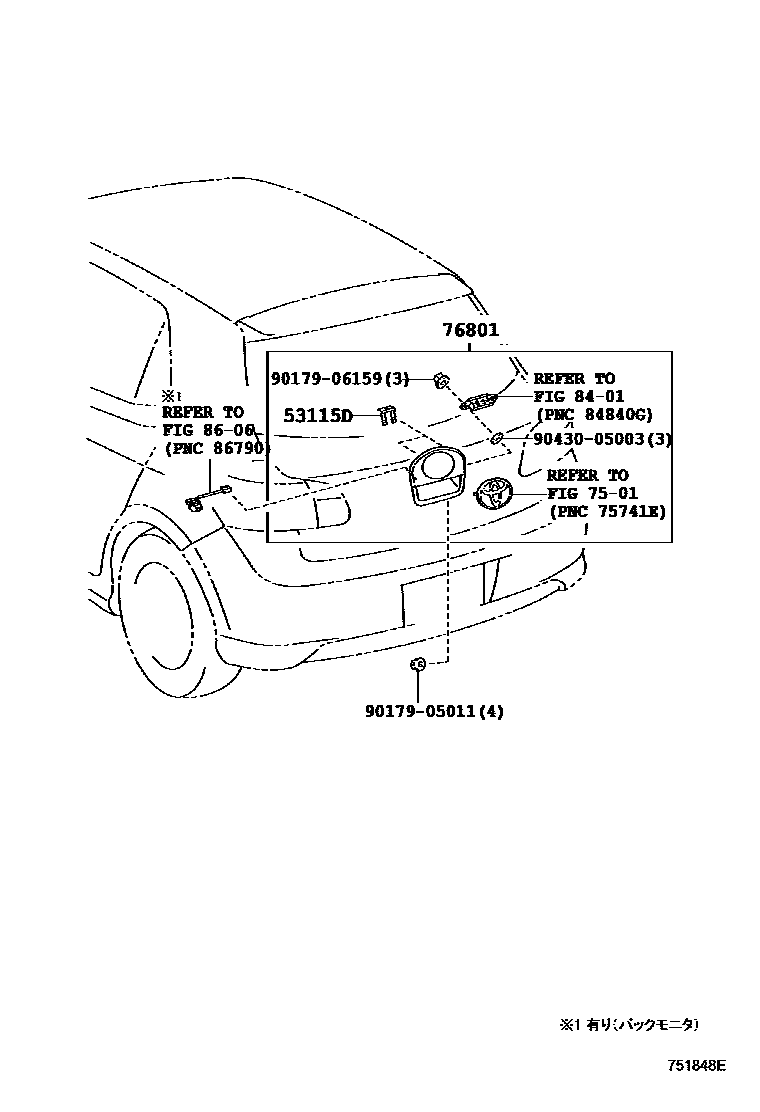

Parts diagram

53115DBRACKET, REAR GARNISH, NO.1

main53115-50020×2i200612-200912

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-12850-A0i200612-200810

COOL WHITE PEARL CS.,075

main76801-12850-A1i200810-200912

WHITE PEARL CS.,070

main76801-12850-B0i200612-200912

SILVER ME.,1C0

main76801-12850-C0i200612-200912

BLACK MC.,209

main76801-12850-D0i200612-200912

SUPER RED 5,3P0

main76801-12850-D1i200612-200912

GINGER RED M.M.,3R6

main76801-12850-D2i200810-200912

MAROON MC.,3N0

main76801-12850-E0i200612-200912

DEEP GOLD PEARL CS.,4T7

main76801-12850-J0i200612-200912

DK.BLUE MC.,8S6

main76801-12901-A0i200612-200810

main76801-12901-A1i200810-200912

main76801-12901-B0i200612-200912

main76801-12901-B1supersedes 76801-12850-B1i200912-201204

main76801-12901-C0i200612-200912

main76801-12901-D0i200612-200912

main76801-12901-D1i200612-200912

main76801-12901-D2i200810-200912

main76801-12901-E0i200612-200912

main76801-12901-G0supersedes 76801-12850-G0i200912-201204

main76801-12901-J0i200612-200912

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9017905011

main90179-05011

9017906159

main90179-06159

9043005003

main90430-05003

8 parts on this diagram · 1 diagram in section

REAR MOULDING for Toyota BLADE

This section contains 8 genuine Toyota parts for the REAR MOULDING system of the Toyota BLADE. Key components include: BRACKET, REAR GARNISH, NO.1, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), GARNISH SUB-ASSY, BACK DOOR, OUTSIDE, SWITCH & RELAY & COMPUTER, CAMERA & REAR MONITOR DISPLAY.
