Toyota BLADE — REAR FOG LAMP

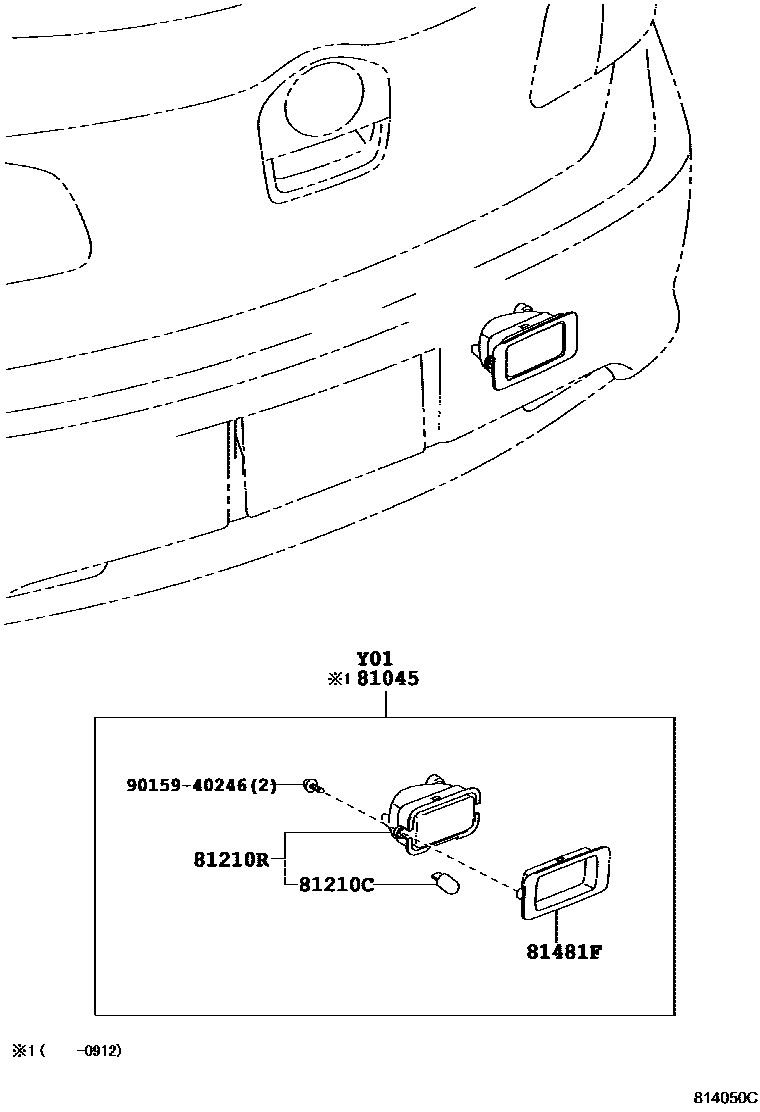

Parts diagram

81045LAMP SET, REAR FOG, RH

main81045-12020-A1i200612-200912

main81045-12020-B0i200612-200912

main81045-12020-B1i200912

main81045-12020-C0i200612-200912

main81045-12020-D0i200612-200912

main81045-12020-D1i200912

main81045-12020-D2i200612-200912

main81045-12020-E0i200912

main81045-12020-G0i200912

main81045-12020-J0i200612-200912

81210CBULB, REAR FOG LAMP

main90981-13043i200612-200912

81210RLAMP ASSY, REAR FOG

main81480-22010i200612-200912

81481FBRACKET, FOG LAMP, RH

main81481-22020-A1i200612-200810

main81481-22020-A2i200810-200912

main81481-22020-B0i200912-201204

main81481-22020-B2i200612-200912

main81481-22020-C2i200912-201204

main81481-22020-D2i200612-200912

main81481-22020-D3i200612-200912

main81481-22020-D4i200810-200912

main81481-22020-E0i200612-200912

main81481-22020-G0i200912-201204

main81481-22020-J0i200612-200912

9015940246

main90159-40246

5 parts on this diagram · 1 diagram in section

REAR FOG LAMP for Toyota BLADE

This section contains 5 genuine Toyota parts for the REAR FOG LAMP system of the Toyota BLADE. Key components include: LAMP SET, REAR FOG, RH, BULB, REAR FOG LAMP, LAMP ASSY, REAR FOG, BRACKET, FOG LAMP, RH.
