Toyota BLADE — PARTIAL ENGINE ASSEMBLY

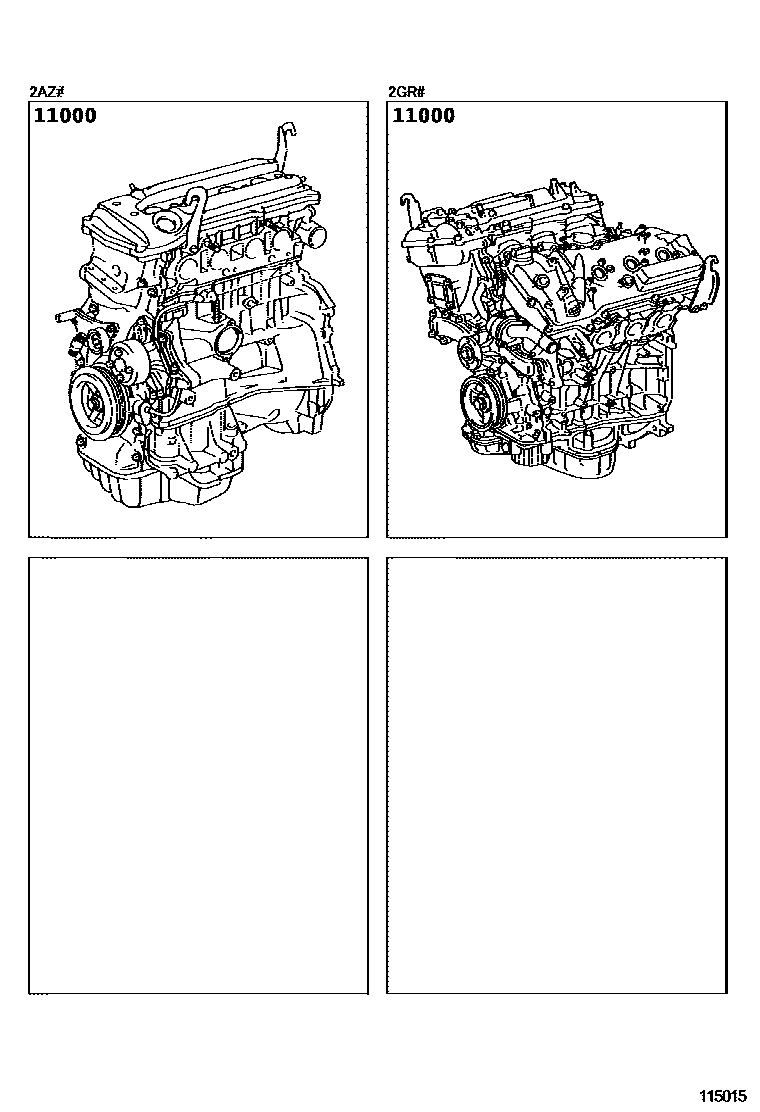

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-31D90i200708-200912
main19000-28D10supersedes 19000-0H330i201011-201204
sub19000-28D11

1 parts on this diagram · 1 diagram in section
