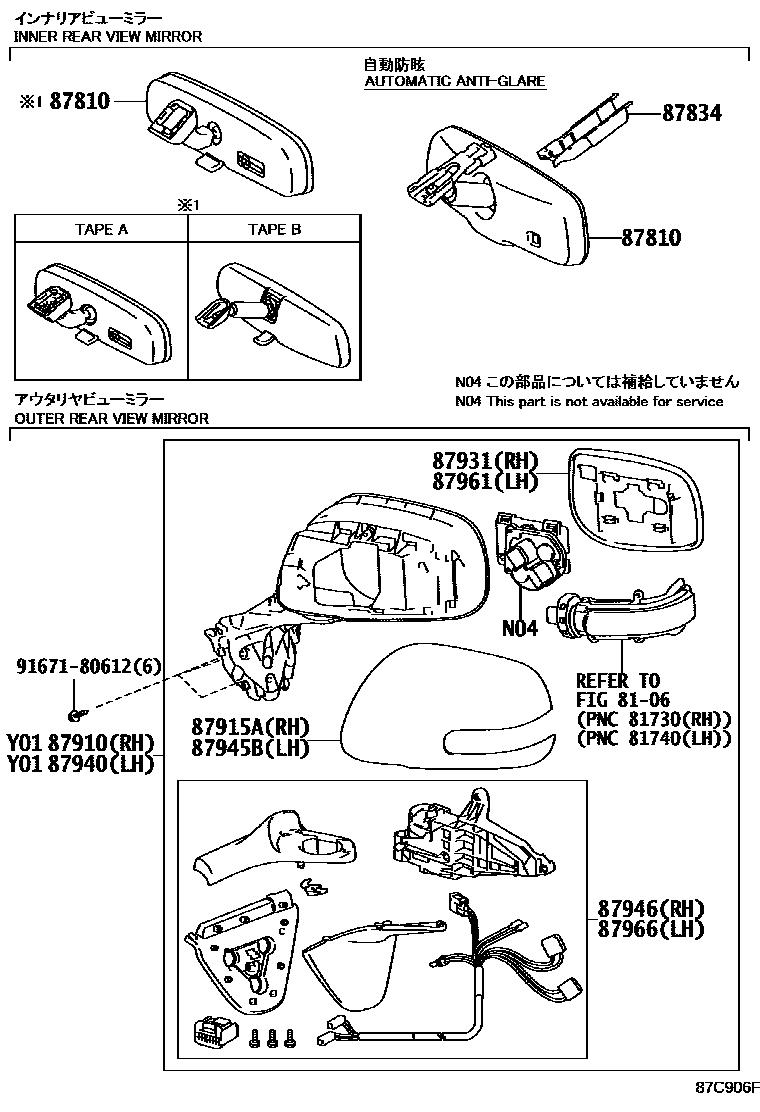

Toyota BLADE — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W110i200612-200912

main87810-52040i200612-200701

main87810-52041i200912-201204

main87810-AA011i201111-201204

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-33010i200612-200912

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12C30-A0supersedes 87910-12C20-A0i200612-200810

main87910-12C30-A1supersedes 87910-12C20-A1i200810-200912

main87910-12C30-B0supersedes 87910-12C20-B0i200612-200912

main87910-12C30-B1supersedes 87910-12C20-B1i200912-201204

main87910-12C30-C0supersedes 87910-12C20-C0i200912-201204

main87910-12C30-D0supersedes 87910-12C20-D0i200612-200912

main87910-12C30-D1supersedes 87910-12C20-D1i200912-201204

main87910-12C30-D2supersedes 87910-12C20-D2i200810-200912

main87910-12C30-E0supersedes 87910-12C20-E0i200612-200912

main87910-12C30-G0supersedes 87910-12C20-G0i200912-201204

main87910-12C30-J0supersedes 87910-12C20-J0i200612-200912

87915ACOVER, OUTER MIRROR, RH

main87915-22050-A0i200612-200810

COOL WHITE PEARL CS.,075

main87915-22050-A2i200912-201204

WHITE PEARL CS.,070

main87915-22050-B0i200912-201204

SILVER ME.,1F7

main87915-22050-B1i200612-200912

SILVER ME.,1C0

main87915-22050-C1i200912-201204

BLACK MC.,209

main87915-22050-D1i200612-200912

SUPER RED 5,3P0

main87915-22050-D2i200612-200912

GINGER RED M.M.,3R6

main87915-22050-D3i200810-200912

MAROON MC.,3N0

main87915-22050-E0i200612-200912

DEEP GOLD PEARL CS.,4T7

main87915-22050-G1i200912-201204

DK.GREEN MC.,6V4

main87915-22050-J0i200612-200912

DK.BLUE MC.,8S6

87931OUTER MIRROR, RH

main87931-12C30supersedes 87931-12C20i200612-200912

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12C50-A0supersedes 87940-12C40-A0i200612-200810

main87940-12C50-A1supersedes 87940-12C40-A1i200810-200912

main87940-12C50-B0supersedes 87940-12C40-B0i200612-200912

main87940-12C50-B1supersedes 87940-12C40-B1i200912-201204

main87940-12C50-C0supersedes 87940-12C40-C0i200912-201204

main87940-12C50-D0supersedes 87940-12C40-D0i200612-200912

main87940-12C50-D1supersedes 87940-12C40-D1i200912-201204

main87940-12C50-D2supersedes 87940-12C40-D2i200810-200912

main87940-12C50-E0supersedes 87940-12C40-E0i200912-201204

main87940-12C50-G0supersedes 87940-12C40-G0i200912-201204

main87940-12C50-J0supersedes 87940-12C40-J0i200612-200912

87945BCOVER, OUTER MIRROR, LH

main87945-22030-A0i200612-200810

COOL WHITE PEARL CS.,075

main87945-22030-A2i200810-200912

WHITE PEARL CS.,070

main87945-22030-B0i200912-201204

SILVER ME.,1F7

main87945-22030-B1i200612-200912

SILVER ME.,1C0

main87945-22030-C1i200912-201204

BLACK MC.,209

main87945-22030-D1i200612-200912

SUPER RED 5,3P0

main87945-22030-D2i200612-200912

GINGER RED M.M.,3R6

main87945-22030-D3i200810-200912

MAROON MC.,3N0

main87945-22030-E0i200912-201204

DEEP GOLD PEARL CS.,4T7

main87945-22030-G1i200912-201204

DK.GREEN MC.,6V4

main87945-22030-J0i200912-201204

DK.BLUE MC.,8S6

87946RETRACTOR, OUTER MIRROR, RH

main87946-12C20-A1i200612-200912

075

main87946-12C30-A0supersedes 87946-12C20-A0i200810-200912

main87946-12C30-A1i200612-200810

main87946-12C30-B0supersedes 87946-12C20-B0i200912

main87946-12C30-B1supersedes 87946-12C20-B1i200612-200912

main87946-12C30-C0supersedes 87946-12C20-C0i200912

main87946-12C30-D0supersedes 87946-12C20-D0i200612-200912

main87946-12C30-D1supersedes 87946-12C20-D1i200612-200912

main87946-12C30-D2supersedes 87946-12C20-D2i200810-200912

main87946-12C30-E0supersedes 87946-12C20-E0i200612-200912

main87946-12C30-G0supersedes 87946-12C20-G0i200912

main87946-12C30-J0supersedes 87946-12C20-J0i200912

87961MIRROR OUTER, LH

main87961-22A30supersedes 87961-12C40i200612-200912

87966RETRACTOR, OUTER MIRROR, LH

main87966-12C50-A0supersedes 87966-12C40-A0i200912

main87966-12C50-A1supersedes 87966-12C40-A1i200612-200810

main87966-12C50-B0supersedes 87966-12C40-B0i200912

main87966-12C50-B1supersedes 87966-12C40-B1i200612-200912

main87966-12C50-C0supersedes 87966-12C40-C0i200912

main87966-12C50-D0supersedes 87966-12C40-D0i200612-200912

main87966-12C50-D1supersedes 87966-12C40-D1i200612-200912

main87966-12C50-D2supersedes 87966-12C40-D2i200810-200912

main87966-12C50-E0supersedes 87966-12C40-E0i200912

main87966-12C50-G0supersedes 87966-12C40-G0i200912

main87966-12C50-J0supersedes 87966-12C40-J0i200912

9167180612

main91671-80612

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota BLADE

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota BLADE. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
