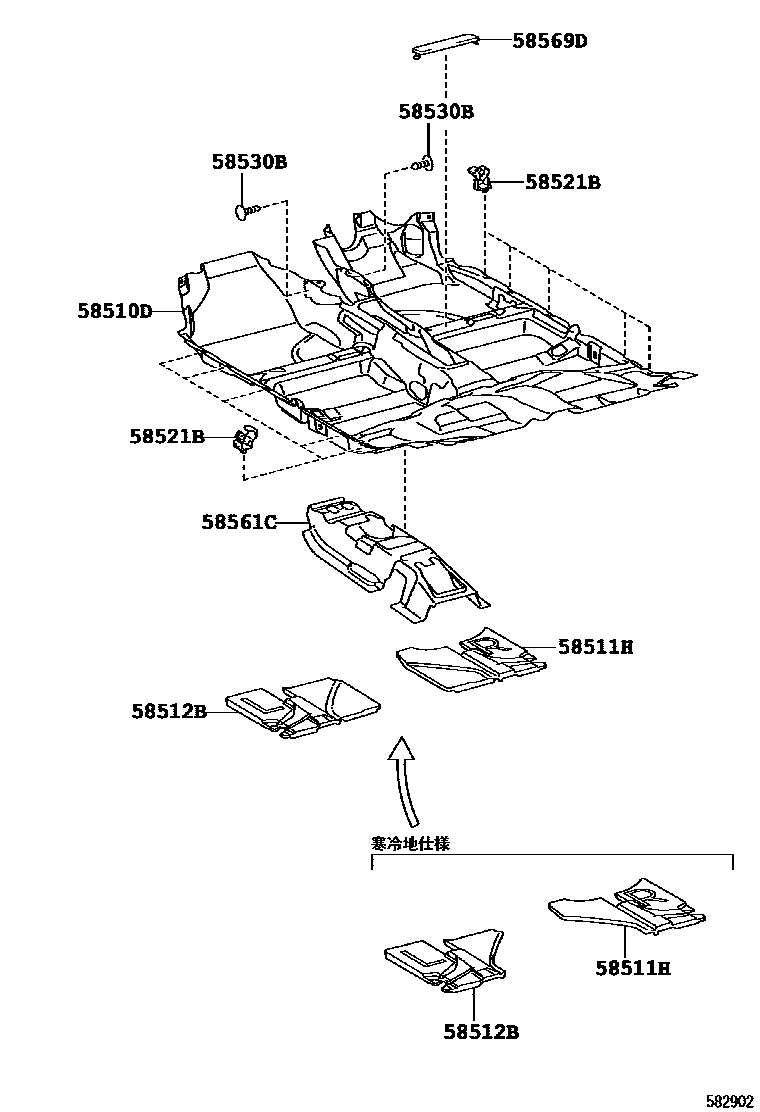

Toyota BLADE — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-12E00-A0supersedes 58510-12D90-A0i200612-200706

main58510-12E00-B1supersedes 58510-12D90-B1i200612-200706

main58510-12E01-A0supersedes 58510-12D91-A0i200707-200912

main58510-12E01-B1supersedes 58510-12D91-B1i200707-200912

main58510-12E20-A0supersedes 58510-12E11-A0i200612-200706

main58510-12E20-B1supersedes 58510-12G90-B0i200612-200706

main58510-12E21-A0supersedes 58510-12E11-A0i200707-200912

main58510-12E21-B1supersedes 58510-12G90-B0i200707-200912

main58510-12G80-A0supersedes 58510-12D40-A0i200912-201204

main58510-12G80-B0supersedes 58510-12D40-B0i200912-201204

main58510-12J00-A0supersedes 58510-12G90-A0i200912-201204

main58510-12J00-B0supersedes 58510-12G90-B0i200912-201204

58511HMAT, FLOOR, FRONT RH

main58512-12240supersedes 58512-12230i200612-200912

58512BMAT, FLOOR, FRONT LH

main58511-12660supersedes 58511-12650i200612-200912

58521BHOOK, FLOOR CARPET

main58521-12140×10i200612-200912

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-A3×2i200912-201204

IVORY,TRIM0#

main90467-05164-B2×2i200612-200912

DK.GRAY,TRIM8#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-12040i200612-200901

main58561-12041i200912

main58561-12050i200612-200901

main58561-12051i200902-200912

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-A0i200612-200912

IVORY,TRIM0#

main58569-12010-B0i200912-201204

DK.GRAY,TRIM8#

7 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota BLADE

This section contains 7 genuine Toyota parts for the MAT & CARPET system of the Toyota BLADE. Key components include: CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, FRONT RH, MAT, FLOOR, FRONT LH, HOOK, FLOOR CARPET, CLIP(FOR FRONT FLOOR CARPET).
