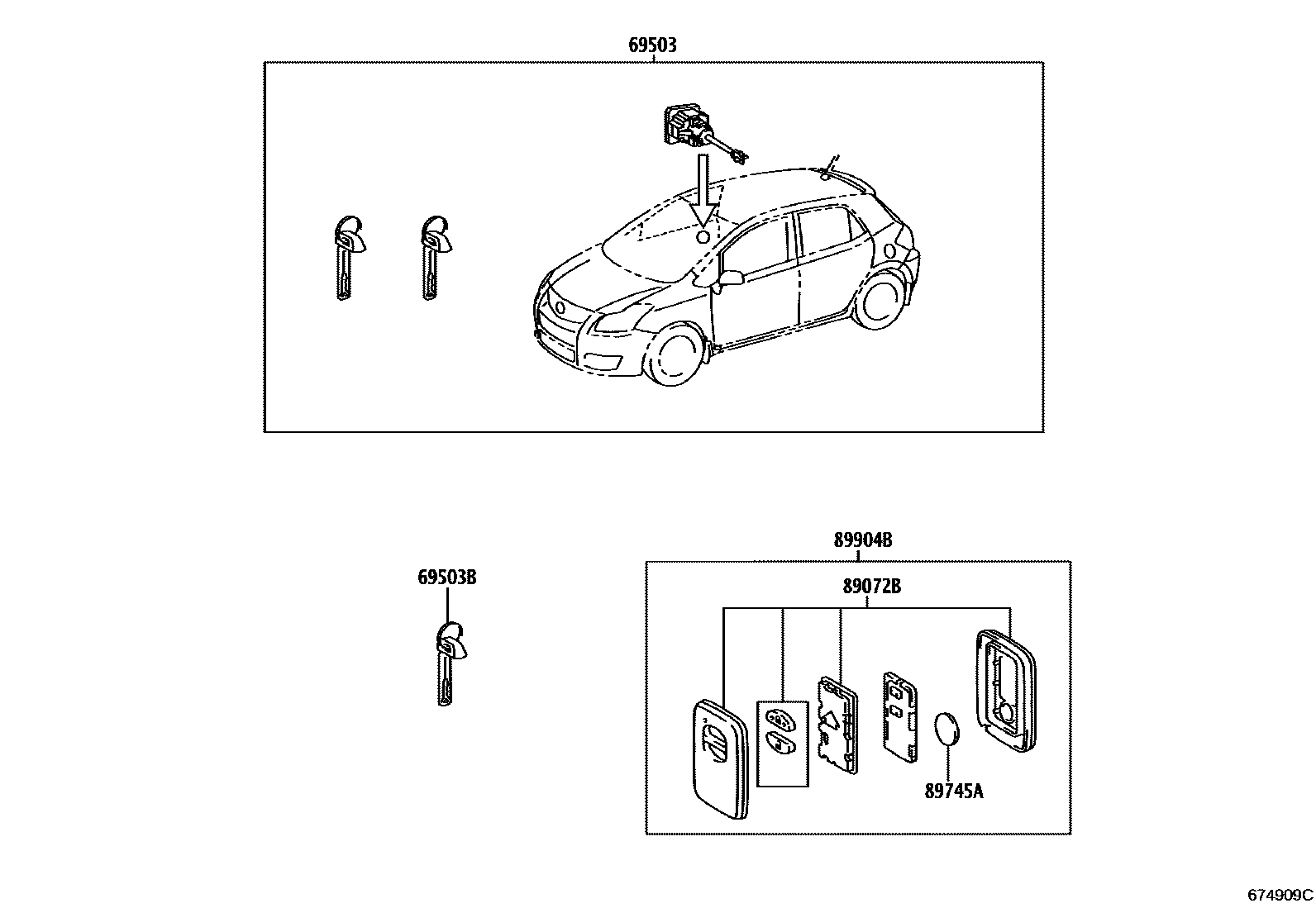

Toyota BLADE — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-5C160i200612-200912

69503BKEY, CUT

main69515-52110×2i200612-200912

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-12450i200612-200912

main89072-47150×2i200912-201204

89745ABATTERY, TRANSMITTER

main89745-52020i200612-200912

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-12071i200907-200912

main89904-12080i200612-200906

main89904-74010×2i200912-201105

main89904-74050×2i201105

5 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota BLADE

This section contains 5 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota BLADE. Key components include: CYLINDER SET, LOCK, KEY, CUT, HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY), BATTERY, TRANSMITTER, TRANSMITTER SUB-ASSY, ELECTRICAL KEY.
