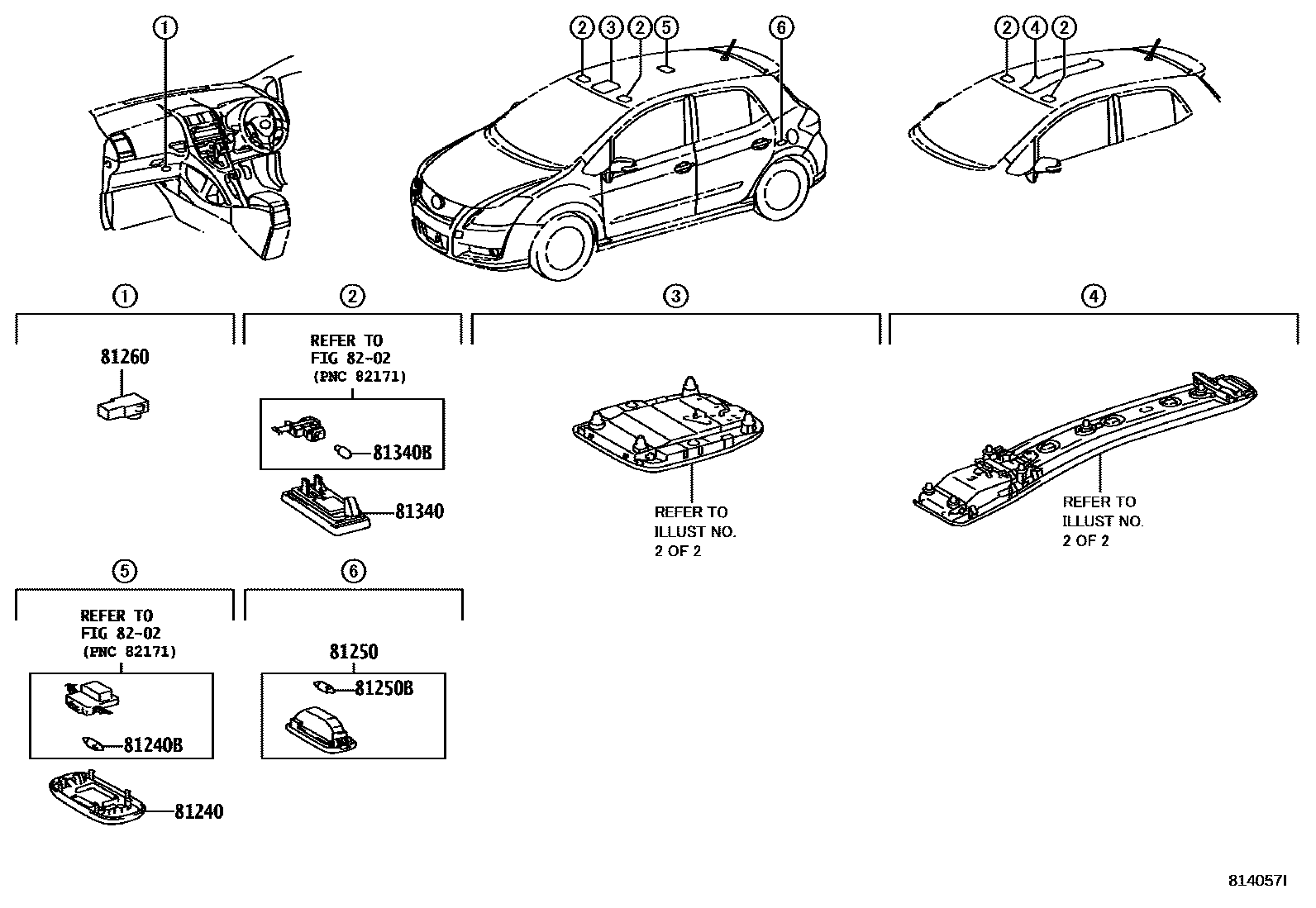

Toyota BLADE — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM8#
81240BBULB, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
8202WIRING & CLAMP
8 parts on this diagram · 3 diagrams in section
INTERIOR LAMP for Toyota BLADE
This section contains 22 genuine Toyota parts for the INTERIOR LAMP system of the Toyota BLADE. Key components include: LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
