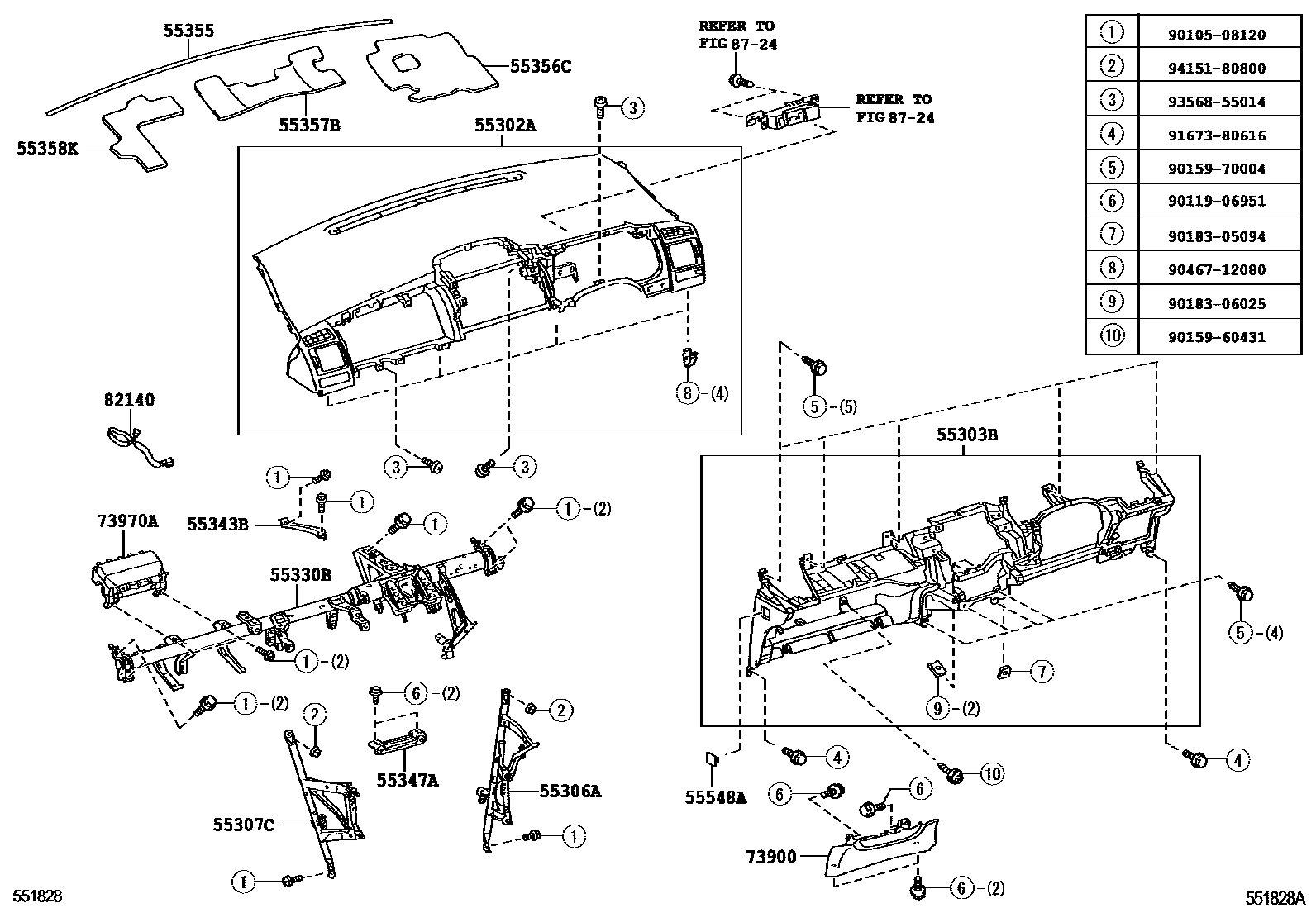

Toyota BLADE — INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#
DK.BLUE,TRIM0#,8#
DK.BLUE,TRIM0#,8#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
DK.BLUE,TRIM0#,8#
DK.BLUE,TRIM0#,8#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55548ACOVER, INSTRUMENT PANEL HOLE
DK.BLUE,TRIM0#,8#; DK.BLUE,TRIM8#
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
IVORY,TRIM0#
DK.BLUE,TRIM8#
IVORY,TRIM0#
DK.BLUE,TRIM8#
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
82140WIRE ASSY, INSTRUMENT PANEL
8724AIR PURIFIER OR ION GENERATOR
9010508120
main90105-08120
9011906951
main90119-06951
9015960431
main90159-60431
9015970004
main90159-70004
9018305094
main90183-05094
9018306025
main90183-06025
9046712080
main90467-12080
9167380616
main91673-80616
9356855014
main93568-55014
9415180800
main94151-80800
26 parts on this diagram · 8 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota BLADE
This section contains 55 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota BLADE. Key components include: DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, PANEL SUB-ASSY, INSTRUMENT, LOWER, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1.
