Toyota BLADEIGNITION COIL & SPARK PLUG / GLOW PLUG

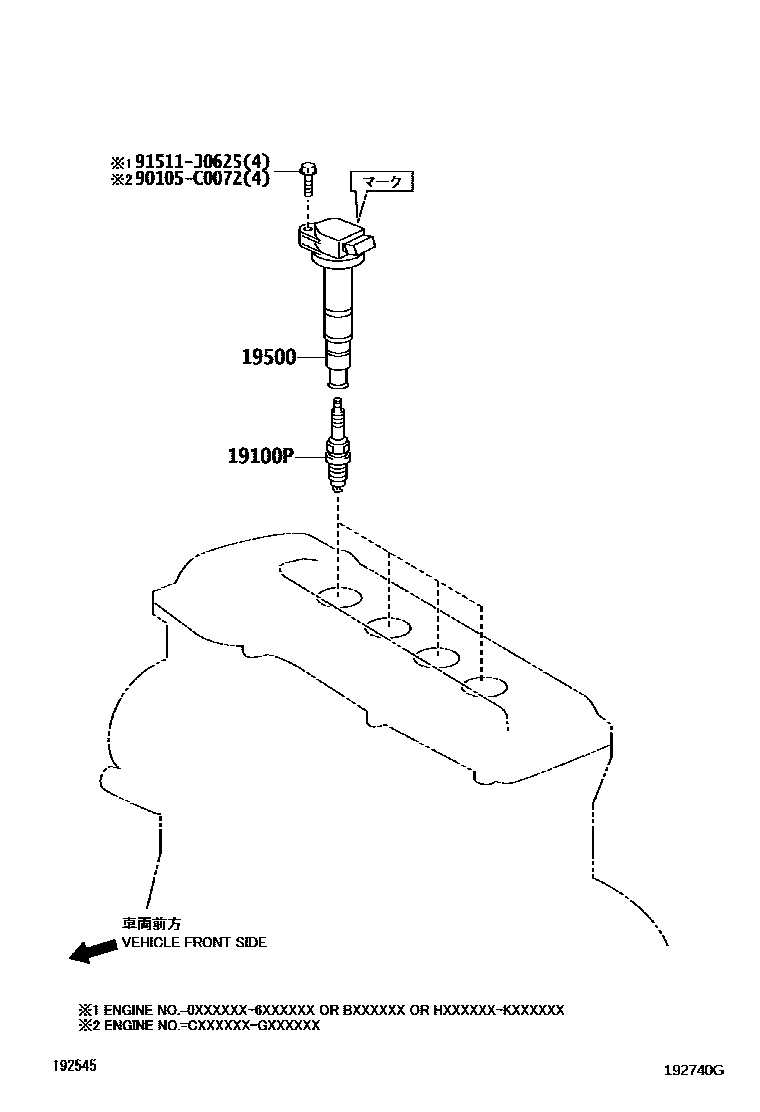

Parts diagram
19100PPLUG, SPARK
main90919-01247×6i200708-200912
main90919-01237×4supersedes 90919-T1007i200912-201204
19500COIL ASSY, IGNITION
main90919-02251×6i200708-200812
main90919-02255×6i200912
main90919-02244×4supersedes 90919-T2005i201011-201204
main90919-02260×4supersedes 90919-T2005i201012-201204
main90919-02266×4supersedes 90919-T2005i201012-201204
main90919-C2002×4supersedes 90919-T2005i200912-201012
main90919-C2006×4supersedes 90919-T2005i200912-201204
90105C0072
91511J0625

4 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota BLADE

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota BLADE. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
