Toyota BLADE — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1708VACUUM PIPING
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22231BHOSE, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
9010906351
main90109-06351
9046912012
main90469-12012
91511C0850
main91511-C0850
91631G0614
main91631-G0614
9167281018
main91672-81018

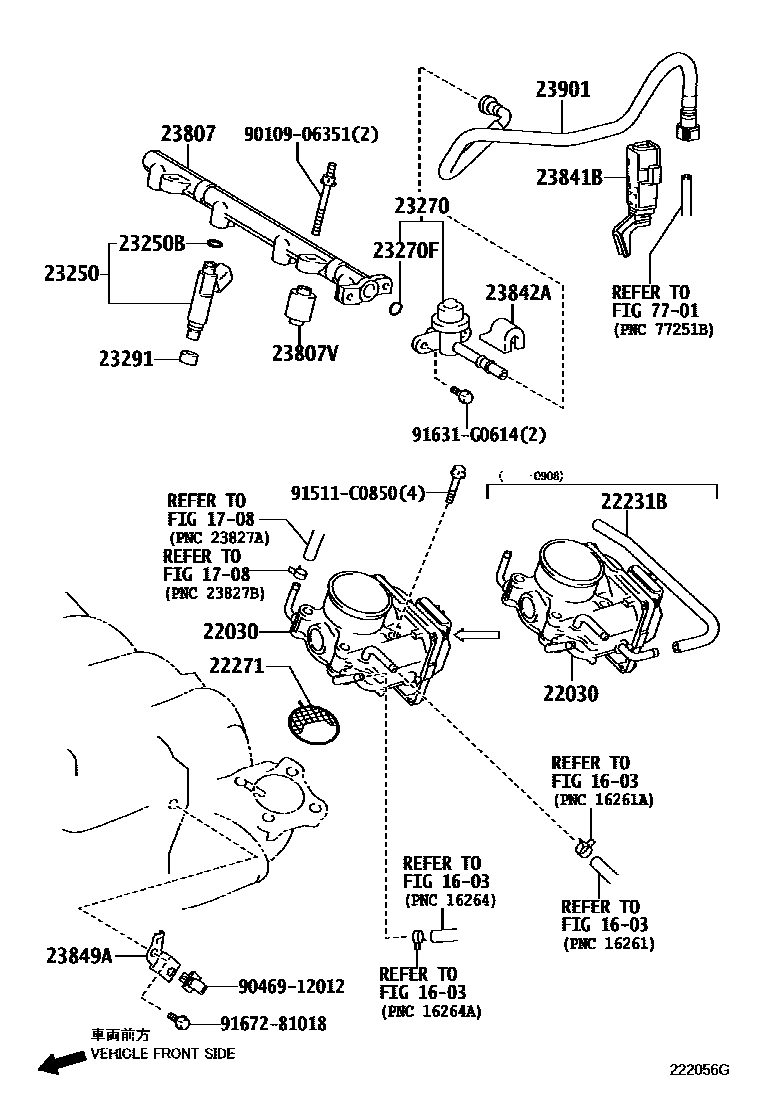

22 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota BLADE
This section contains 26 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota BLADE. Key components include: RADIATOR & WATER OUTLET, VACUUM PIPING, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, HOSE, THROTTLE BODY, GASKET, THROTTLE BODY.
