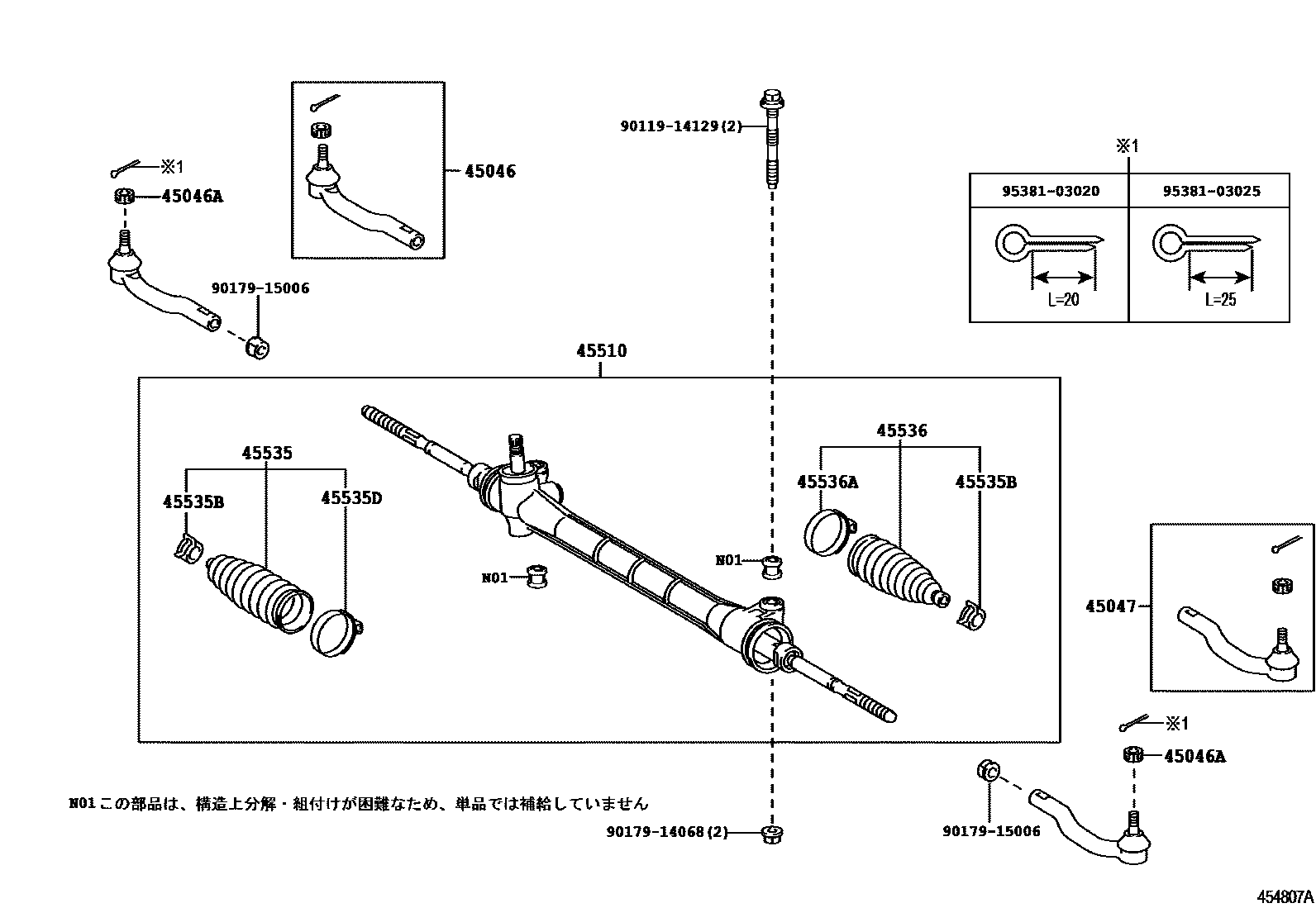

Toyota BLADE — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45510GEAR ASSY, STEERING
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011914129
main90119-14129
9017914068
main90179-14068
9017915006
main90179-15006
9538103020
main95381-03020
9538103025
main95381-03025
14 parts on this diagram · 2 diagrams in section
FRONT STEERING GEAR & LINK for Toyota BLADE
This section contains 14 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota BLADE. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
