Toyota BLADE — FRONT DOOR WINDOW REGULATOR & HINGE

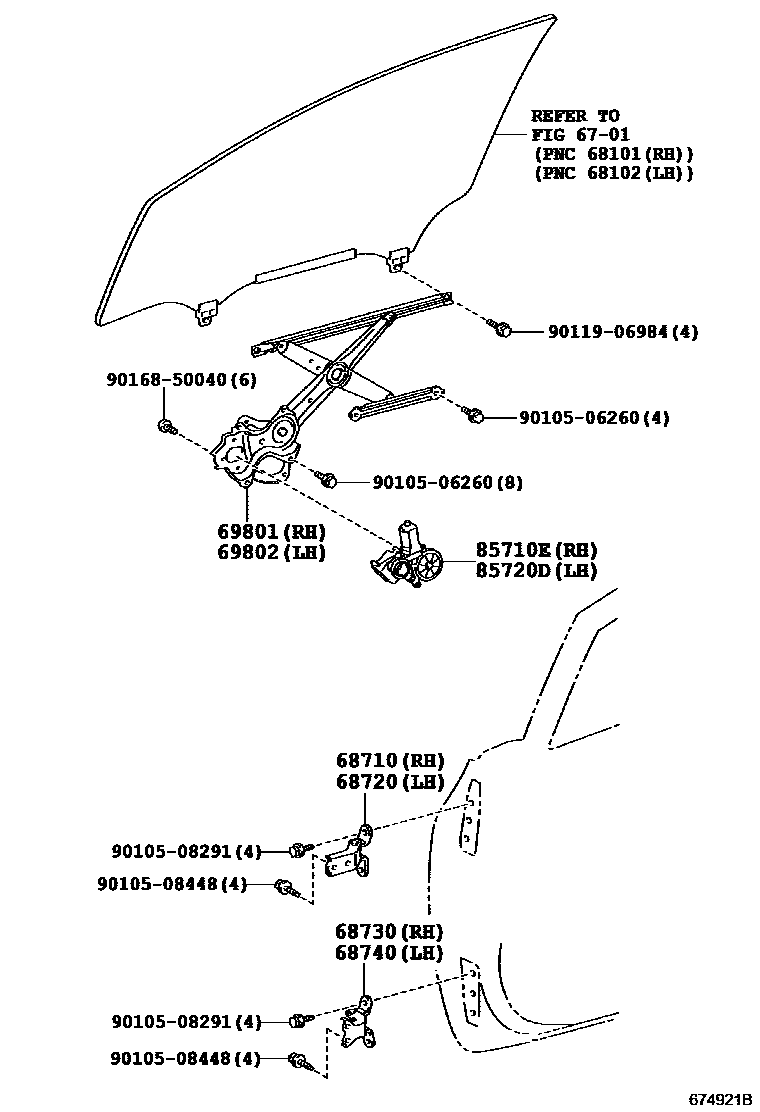

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i200612-200912

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i200612-200912

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i200612-200912

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i200612-200912

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12220i200612-200912

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12220i200612-200912

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12360i200612-200709

main85710-12361i200710-200912

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12350i200612-200709

main85720-12351i200710-200912

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota BLADE

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota BLADE. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
