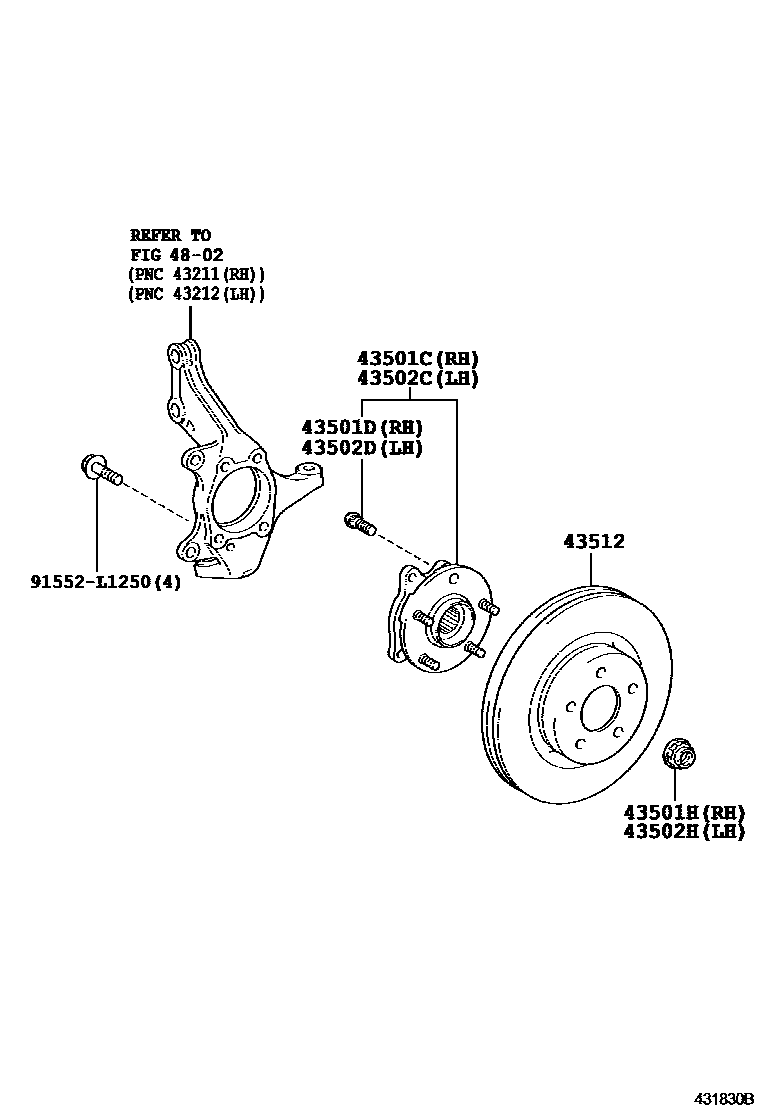

Toyota BLADE — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010i200612-200912

main43550-42020i200708-200912

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200612-200912

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200612-200912

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010i200912

main43550-42020i200912

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200612-200912

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200912

43512DISC, FRONT

main43512-42040×2i200612-200912

main43512-42050×2i200708-200912

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

9 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota BLADE

This section contains 9 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota BLADE. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH).
