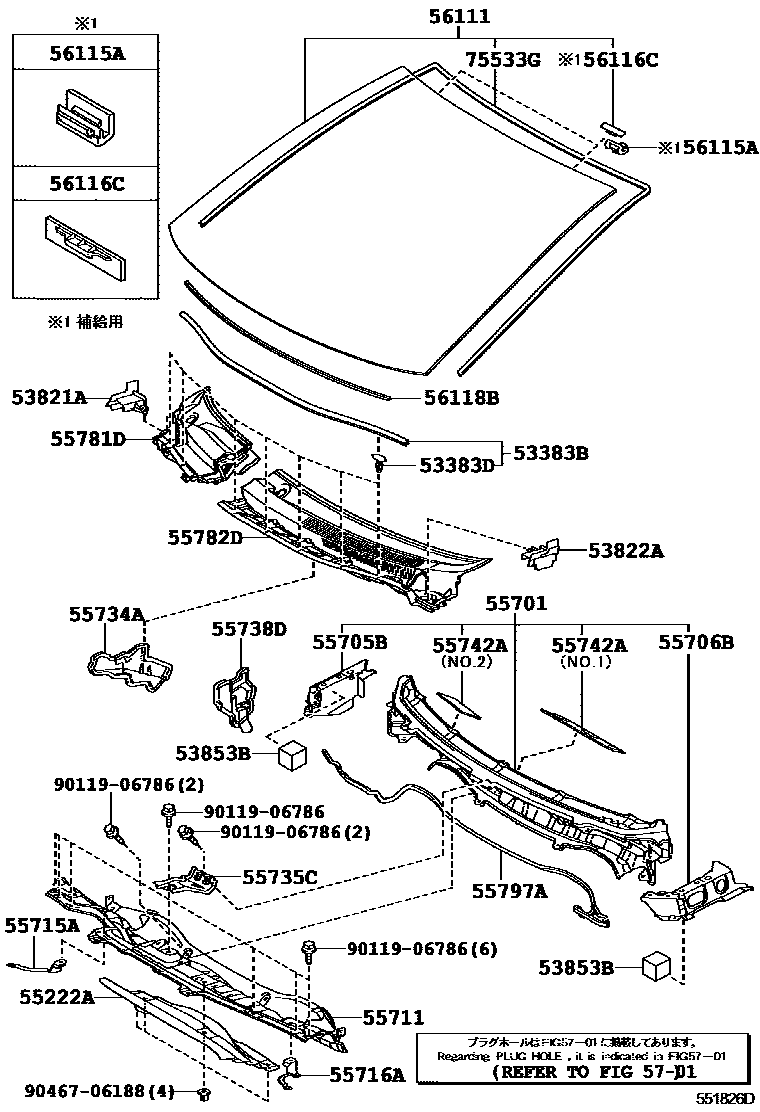

Toyota BLADE — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12150i200612-200912

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7i200612-200912

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-12060i200612-200912

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-12060i200612-200912

53853BPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53855-12020×2i200912

55222AINSULATOR, DASH PANEL, OUTER CENTER

main55224-12010i200612-200912

main55224-12030i200708-200912

55701PANEL SUB-ASSY, COWL

main55700-12B60i200612-200912

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12070i200612-200912

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12080i200612-200912

55711PANEL, COWL TOP, OUTER

main55701-12A10i200612-200912

main55701-12A70i200708-200912

55715ABRACE, COWL TOP TO APRON, RH

main53715-12060i200612-200702

main53715-12061i200702-200912

55716ABRACE, COWL TOP TO APRON, LH

main53716-12070i200612-200702

main53716-12071i200702-200912

55734APLATE, WATER GUARD, RH

main55734-12110i200612-200912

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-12070i200612-200912

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-12120i200612-200912

55742ASHEET, COWL TOP INSULATOR

main55742-12130i200912

main55743-12040i200612-200912

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-12310i200612-200710

main55708-12311i200711-200912

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12100supersedes 55709-12091i200612-200807

main55709-12101supersedes 55709-12091i200808-200912

55797ASEAL, COWL WATER EXTRACT

main55797-12030i200612-200912

56111GLASS, WINDSHIELD

main56101-12290supersedes 56101-12300i200612-200912

main56101-12710supersedes 56101-12720i200912

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120i200612-200912

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200612-200912

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-12290i200612-200912

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-12630i200612-200912

9011906786

main90119-06786

9046706188

main90467-06188

27 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota BLADE

This section contains 27 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota BLADE. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PROTECTOR, FRONT SIDE PANEL, NO.1 RH, PROTECTOR, FRONT SIDE PANEL, NO.1 LH, PAD, FRONT WHEEL OPENING EXTENSION, NO.1.
