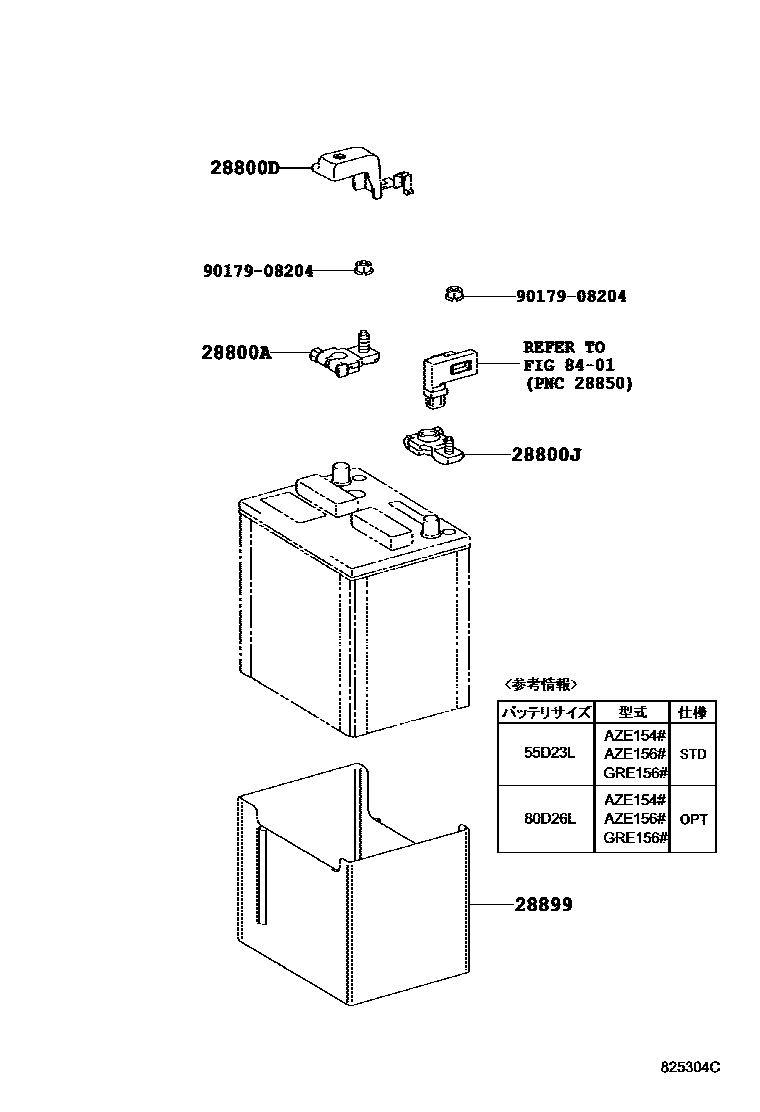

Toyota BLADE — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i200912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i200612-200912

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i200912

28899INSULATOR, BATTERY

main28899-28080i200612-200912

main28899-31060i200708-200912

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota BLADE

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota BLADE. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, INSULATOR, BATTERY, SWITCH & RELAY & COMPUTER.
