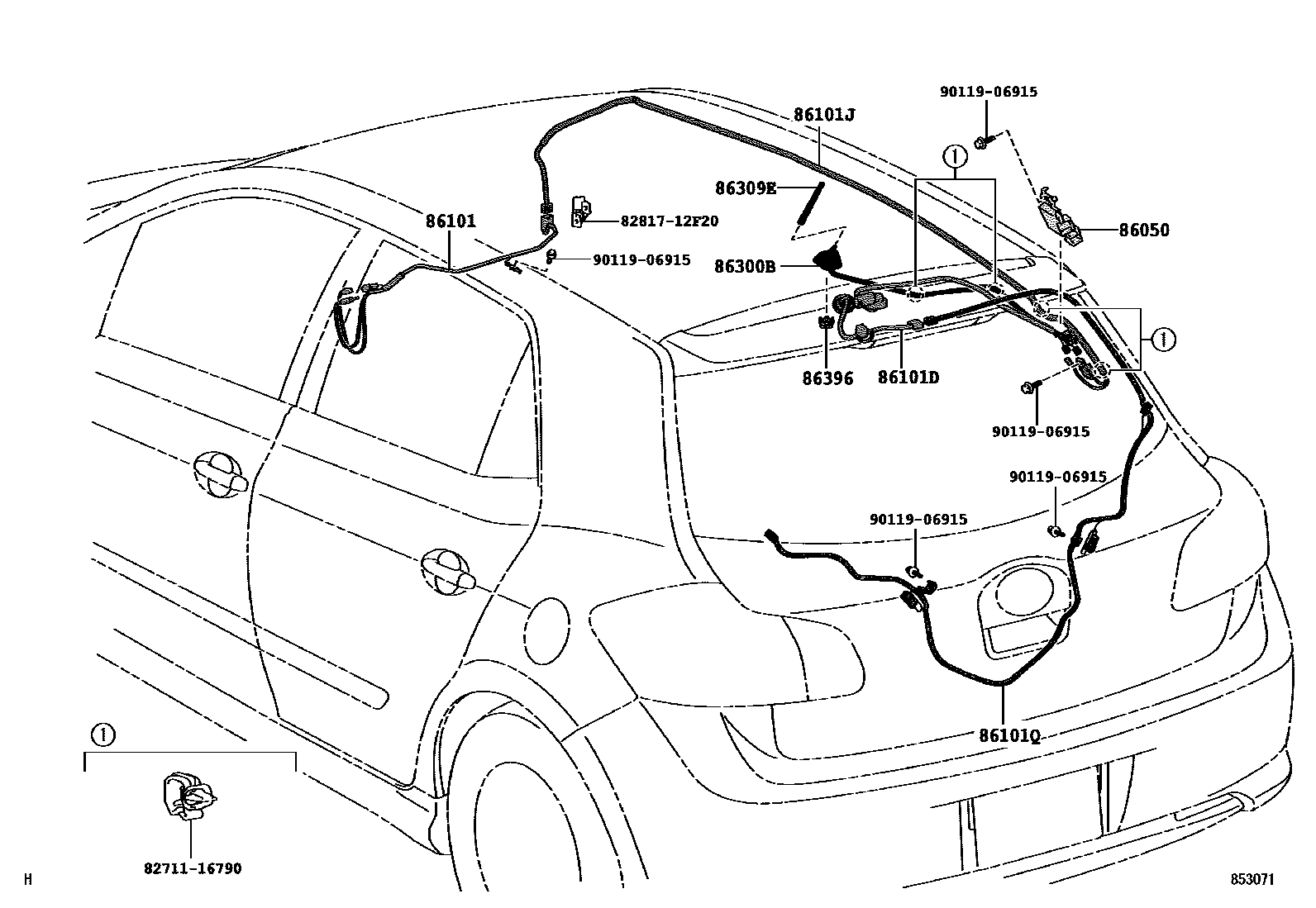

Toyota BLADE — ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-12040i200612-200912

86101CORD SUB-ASSY, ANTENNA

main86101-12490supersedes 86101-12460i200612-200912

main86101-12850supersedes 86101-12460i200912

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-12470i200612-200912

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-12410i200912-201204

main86101-12440supersedes 86101-12410i200612-200912

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-12590i200612-200912

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-12850i200612-200912

main86300-12A70i200912

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-20310i200612-200912

main86309-42070i200912

86396NUT, ANTENNA

main86396-20040i200612-200912

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8281712F20PROTECTOR, WIRING HARNESS, NO.1

main82817-12F20

9011906915

main90119-06915

11 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota BLADE

This section contains 11 genuine Toyota parts for the ANTENNA system of the Toyota BLADE. Key components include: ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, CORD SUB-ASSY, ANTENNA, NO.4.
