Toyota BLADE — ABS & VSC

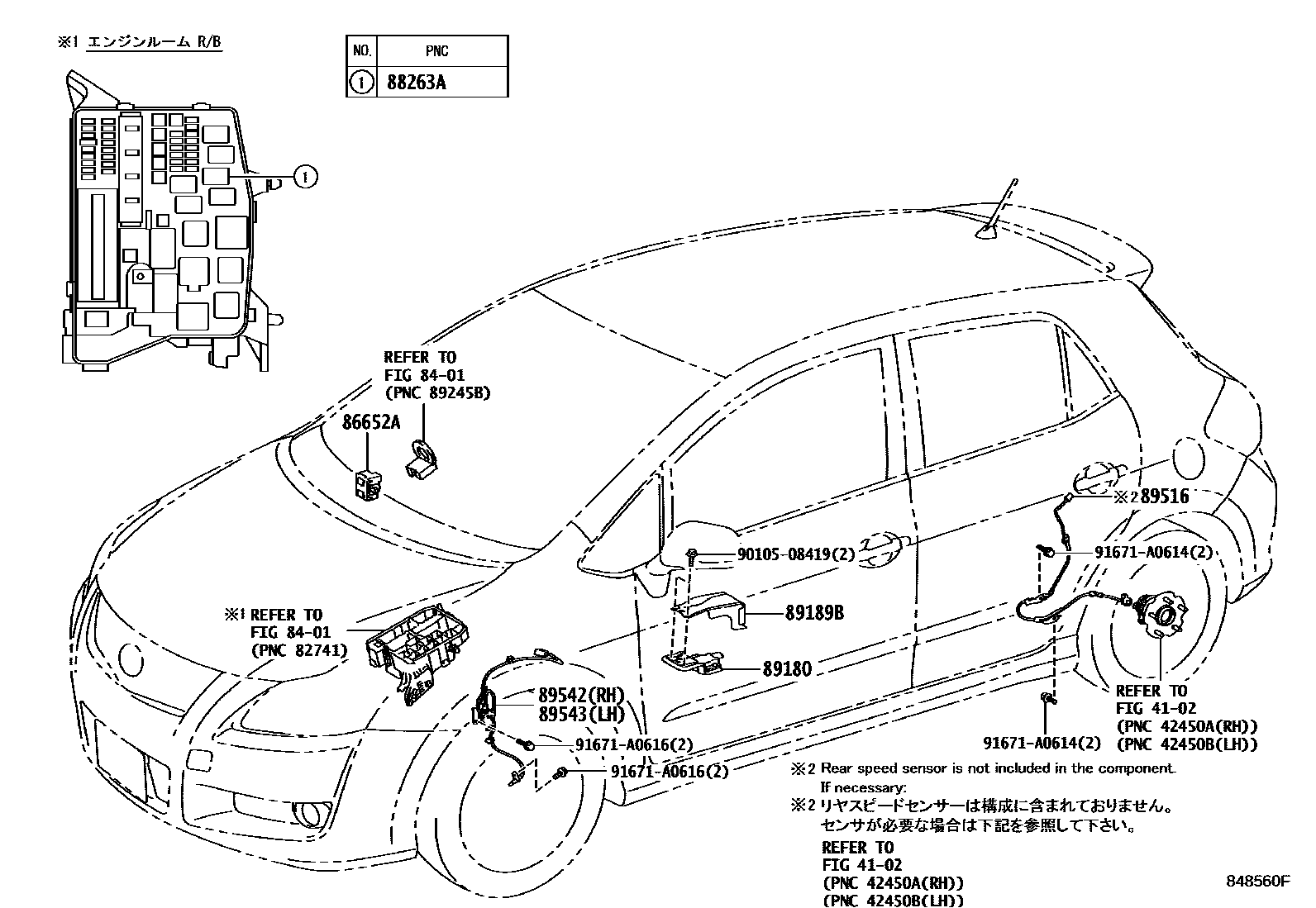

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010i200912

88263ARELAY, SKID CONTROL

main90987-04004i200612-200912

89180SENSOR ASSY, YAWRATE

main89180-12061i200612-200708

main89180-12080i200709-200912

main89180-12140i200912

89189BBRACKET, YAWRATE SENSOR

main89189-12091i200612-200912

89516WIRE, SKID CONTROL SENSOR

main89516-12160i200912-201204

main89516-12170i200612-200912

89542SENSOR, SPEED, FRONT RH

main89542-12080i200612-200912

89543SENSOR, SPEED, FRONT LH

main89543-12080i200612-200912

9010508419

main90105-08419

91671A0614

main91671-A0614

91671A0616

main91671-A0616

12 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota BLADE
