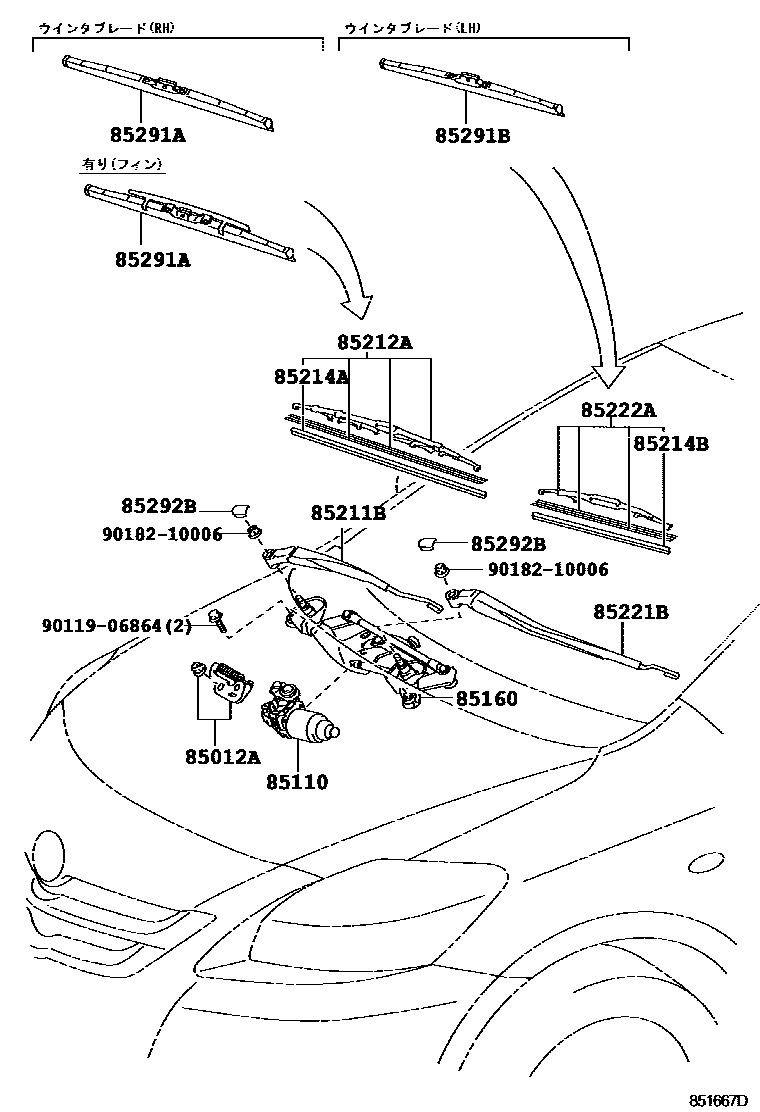

Toyota BELTA — WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52420iKSP92,NCP96,SCP92200511-201206

85160LINK ASSY, WINDSHIELD WIPER

main85150-52310iKSP92,NCP96,SCP92200511-201206

85211BARM, FRONT WIPER, RH

main85211-52270iKSP92,NCP96,SCP92200511-200607

sub85211-52271

main85211-52271iKSP92,NCP96,SCP92200608-201206

85212ABLADE, FR WIPER, RH

main85212-30370iKSP92,NCP96,SCP92200511-201206

85214ARUBBER, WIPER, RH

main85214-50100iKSP92,NCP96,SCP92200511-201206

85214BRUBBER, WIPER, LH

main85214-68010iKSP92,NCP96,SCP92200511-200604

sub85214-68011

main85214-68011iKSP92,NCP96,SCP92200604-201206

85221BARM, FRONT WIPER, LH

main85221-52270iKSP92,NCP96,SCP92200511-200607

sub85221-52271

main85221-52271iKSP92,NCP96,SCP92200608-201206

85222ABLADE, FR WIPER, LH

main85222-68010iKSP92,NCP96,SCP92200511-200603

sub85222-68011

main85222-68011iKSP92,NCP96,SCP92200604-201206

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-24090iKSP92,NCP96,SCP92200511-200607

main85291-24100iKSP92,NCP96,SCP92200511-200607

main85291-50060iKSP92,NCP96,SCP92200608-201206

main85291-50070iKSP92,NCP96,SCP92200608-201206

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iKSP92,NCP96,SCP92200511-201206

9011906864

main90119-06864

9018210006

main90182-10006

14 parts on this diagram · 1 diagram in section
