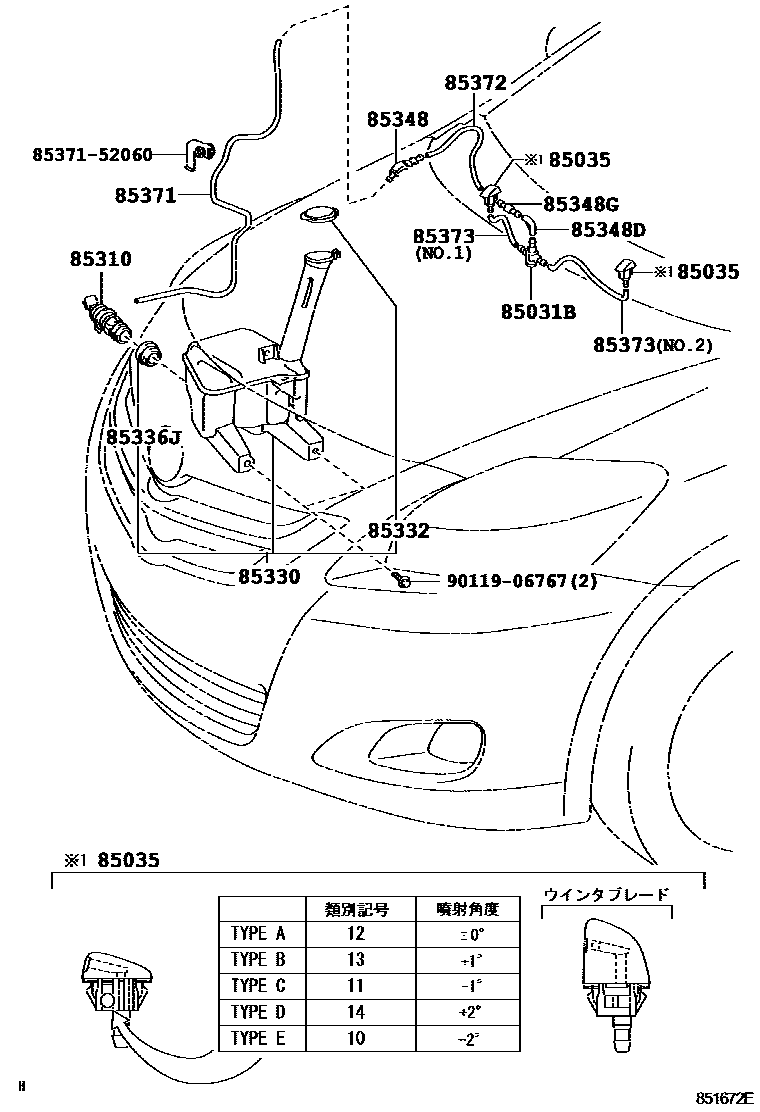

Toyota BELTA — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-30080iKSP92,NCP96,SCP92200808-201206

85035NOZZLE SUB-ASSY, WASHER

main85381-52320×2supersedes 85381-52310iKSP92,NCP96,SCP92200808-201206

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iKSP92,NCP96,SCP92200511-200808

85330JAR ASSY, WINDSHIELD WASHER

main85315-52230supersedes 85315-52220iKSP92,NCP96,SCP92200511-200808

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iKSP92,NCP96,SCP92200511-200808

85336JPROTECTOR, WASHER JAR

main85336-60300iKSP92,NCP96,SCP92200511-200808

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-52390iKSP92,NCP96,SCP92200511-200808

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iKSP92,NCP96,SCP92200511-200808

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iKSP92,NCP96,SCP92200808-201206

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33741

main90099-33826

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKSP92,NCP96,SCP92200511-200808

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKSP92,NCP96,SCP92200511-200808

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

9011906767

main90119-06767

14 parts on this diagram · 1 diagram in section
