Toyota BELTA — WATER PUMP

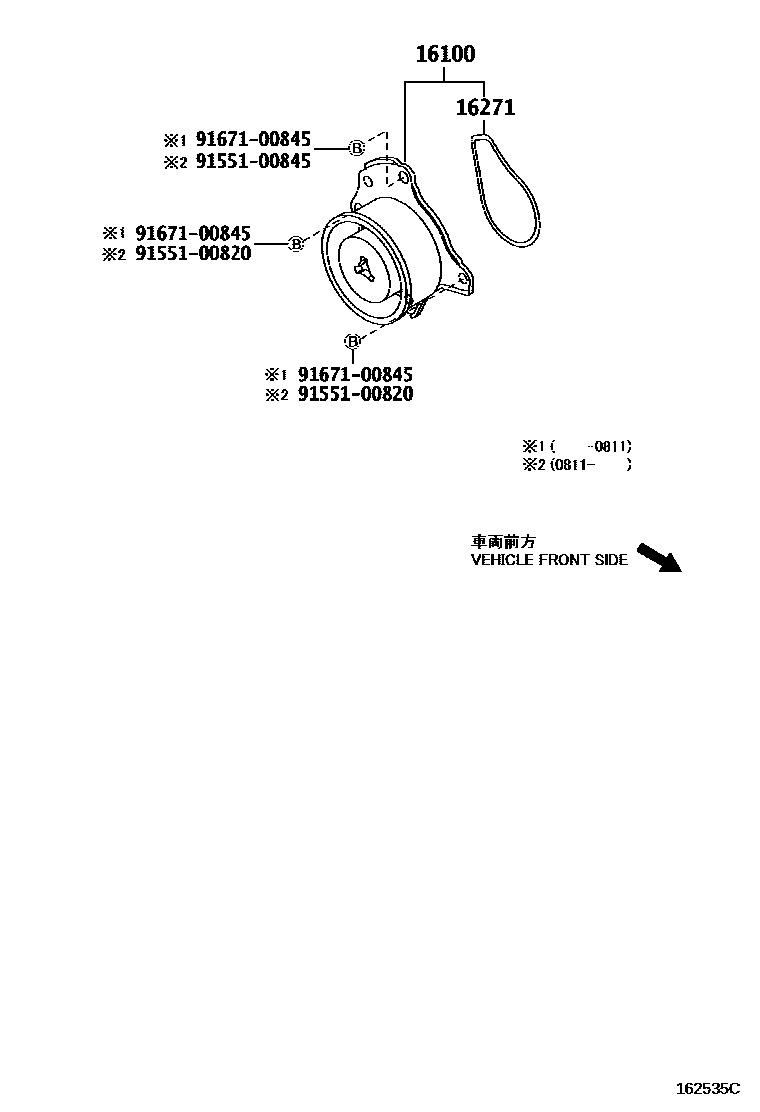

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-29116i200511-200704

main16100-29117i200705-200808

main16100-29156i200808-201111

main16100-29157i201111-201206

main16100-80003i200808-200811

main16100-80007i200811-201206

16271GASKET, WATER PUMP

main16271-21020i200808-201111

main16271-21021i201111-201206

main16271-23020i200511-200805

main16271-23030i200805-200808

main16271-40020i200511-200808

9155100820

main91551-00820

9155100845

main91551-00845

9167100845

main91671-00845

5 parts on this diagram · 3 diagrams in section

WATER PUMP for Toyota BELTA

This section contains 14 genuine Toyota parts for the WATER PUMP system of the Toyota BELTA. Key components include: PUMP ASSY, ENGINE WATER, PULLEY, WATER PUMP, GASKET, WATER PUMP, BOLT, STUD(FOR WATER PUMP COUPLING).
