Toyota BELTA — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

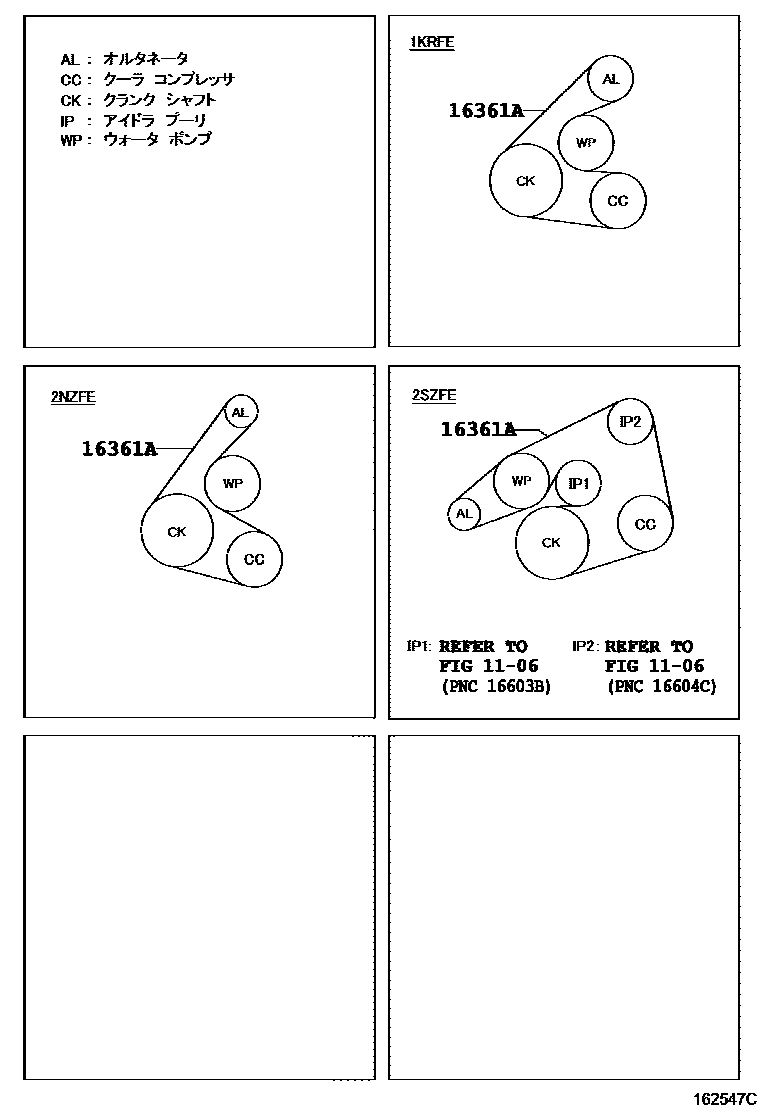

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02556i200511-200808

main90916-02606i200808-201206

main90916-02649i200511-200808

main90916-02701i201012-201206

main90916-02705i201203-201206

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota BELTA

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota BELTA. Key components include: TIMING GEAR COVER & REAR END PLATE, BELT, V(FOR FAN & ALTERNATOR).
