Toyota BELTA — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1������-� 0005 1�������� �������� 0006 1��� 0007 1������������ 0008 1������� & �����-��� ���� 0009 1���,�-�,��� & ����-��

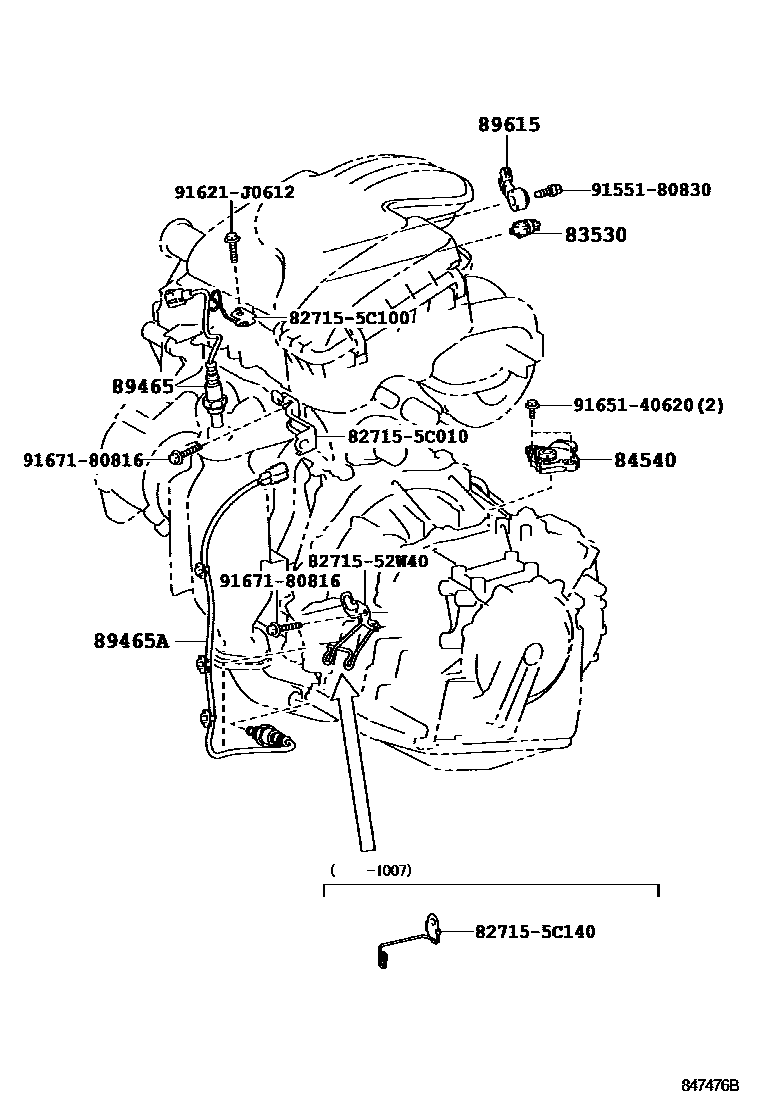

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iKSP92,NCP96,SCP92200511-200808

main83530-60020iKSP92,NCP96,SCP92200511-200808

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP96200808-201206

main84540-52070iKSP92,SCP92200511-200808

89465SENSOR, OXYGEN

main89465-52250iSCP92200511-200808

main89465-52330iKSP92200808-201007

main89465-52390iNCP96200511-200808

main89467-12220iNCP96201007-201206

main89467-52140iKSP92201007-201206

sub89467-52180

main89467-52150iSCP92201007-201206

89465ASENSOR, OXYGEN NO.2

main89465-52350iKSP92200511-200808

main89465-52360iSCP92200511-200808

main89465-52540iSCP92201007-201206

main89465-52650iKSP92201007-201206

main89465-52660iNCP96201007-201206

89615SENSOR, KNOCK CONTROL

main89615-20090iKSP92,NCP96,SCP92200511-200808

8271552W40BRACKET,WIRING HARNESS CLAMP

main82715-52W40

827155C010BRACKET,WIRING HARNESS CLAMP

main82715-5C010

827155C100BRACKET,WIRING HARNESS CLAMP

main82715-5C100

827155C140BRACKET,WIRING HARNESS CLAMP

main82715-5C140

9155180830

main91551-80830

91621J0612

main91621-J0612

9165140620

main91651-40620

9167180816

main91671-80816

13 parts on this diagram · 9 diagrams in section
