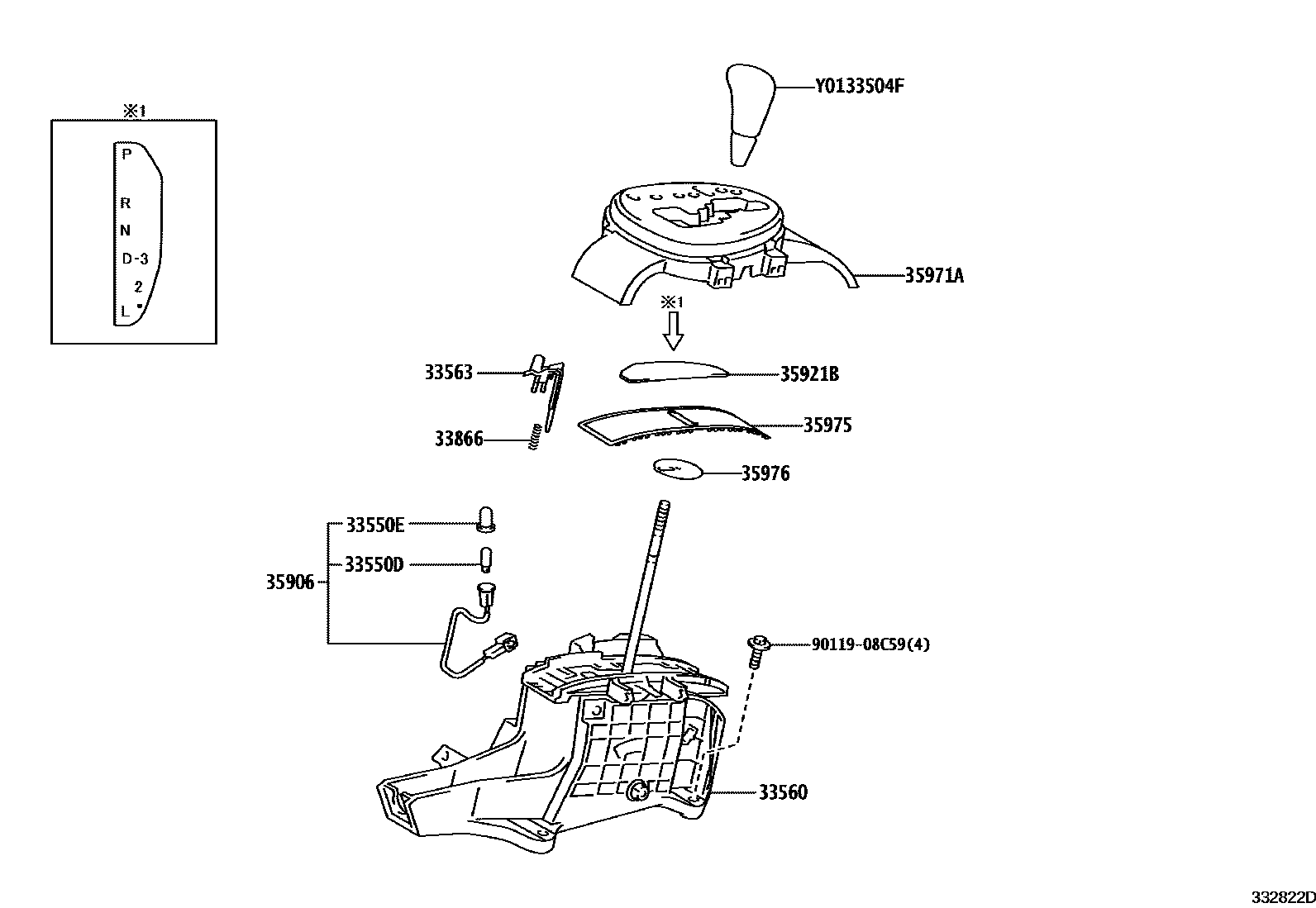

Toyota BELTA — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-52080-B0i200511-200808

DK.GRAY,TRIM4#

main33504-52080-E0i200808-201206

ASH BROWN,TRIM4#

33550DBULB, POSITION INDICATOR LAMP

main35955-74010i200808-201206

33550ECAP, POSITION INDICATOR LAMP

main35956-52020i200808-201206

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52200supersedes 33560-52210i200511-200808

main33560-52300supersedes 33560-52310i200511-200808

33563BUTTON, SHIFT LOCK RELEASE

main33563-52080i200511-200808

33866SPRING, SHIFT LOCK RELEASE

main33866-52010i200511-200808

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52050i200808-201206

35921BPLATE, CONTROL POSITION INDICATOR NO,2

main35921-52070i200808-201206

main35921-52080i200511-200808

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52290i200511-200808

main35971-52300i200511-200808

main35971-52340i200808-201206

main35971-52360i200808-201206

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52080i200511-200808

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-52080i200511-200808

9011908C59

main90119-08C59

12 parts on this diagram · 4 diagrams in section

SHIFT LEVER & RETAINER for Toyota BELTA

This section contains 21 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota BELTA. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL, BUTTON, SHIFT LOCK RELEASE.
