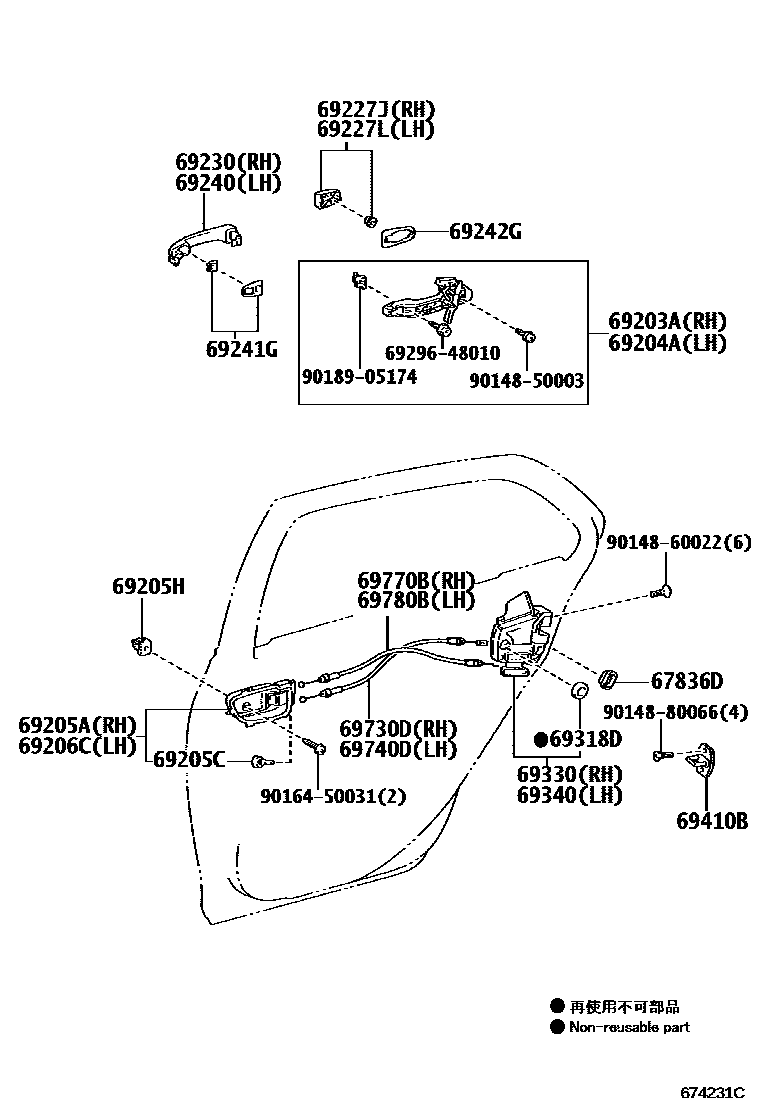

Toyota BELTA — REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69205HGROMMET(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
WHITE,068
LT.OLIVE ME.,6U4
TURQUOISE ME.,777
SILVER M.M.,1E7
DK.GRAY MC.,1E0
SILVER ME.,1F7
GRAYISH BLUE ME.,8R3
BLUE ME.,8N0
RED M.M.,3R3
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
WHITE,068
LT.OLIVE ME.,6U4
TURQUOISE ME.,777
SILVER M.M.,1E7
DK.GRAY MC.,1E0
SILVER ME.,1F7
GRAYISH BLUE ME.,8R3
BLUE ME.,8N0
RED M.M.,3R3
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
WHITE,068
LT.OLIVE ME.,6U4
TURQUOISE ME.,777
SILVER M.M.,1E7
DK.GRAY MC.,1E0
GRAYISH BLUE ME.,8R3
RED M.M.,3R3
WHITE,068
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
DK.GRAY MC.,1E0
SILVER ME.,1F7
RED M.M.,3R3
LT.OLIVE ME.,6U4
TURQUOISE ME.,777
GRAYISH BLUE ME.,8R3
BLUE ME.,8N0
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
WHITE,068
LT.OLIVE ME.,6U4
TURQUOISE ME.,777
SILVER M.M.,1E7
DK.GRAY MC.,1E0
GRAYISH BLUE ME.,8R3
RED M.M.,3R3
WHITE,068
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
DK.GRAY MC.,1E0
SILVER ME.,1F7
RED M.M.,3R3
LT.OLIVE ME.,6U4
TURQUOISE ME.,777
GRAYISH BLUE ME.,8R3
BLUE ME.,8N0
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905174
main90189-05174
27 parts on this diagram · 1 diagram in section
REAR DOOR LOCK & HANDLE for Toyota BELTA
This section contains 27 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota BELTA. Key components include: COVER, REAR DOOR LOCK CHILD PROTECTION, FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, REAR DOOR INSIDE, RH, CUSHION(FOR REAR DOOR INSIDE HANDLE).
