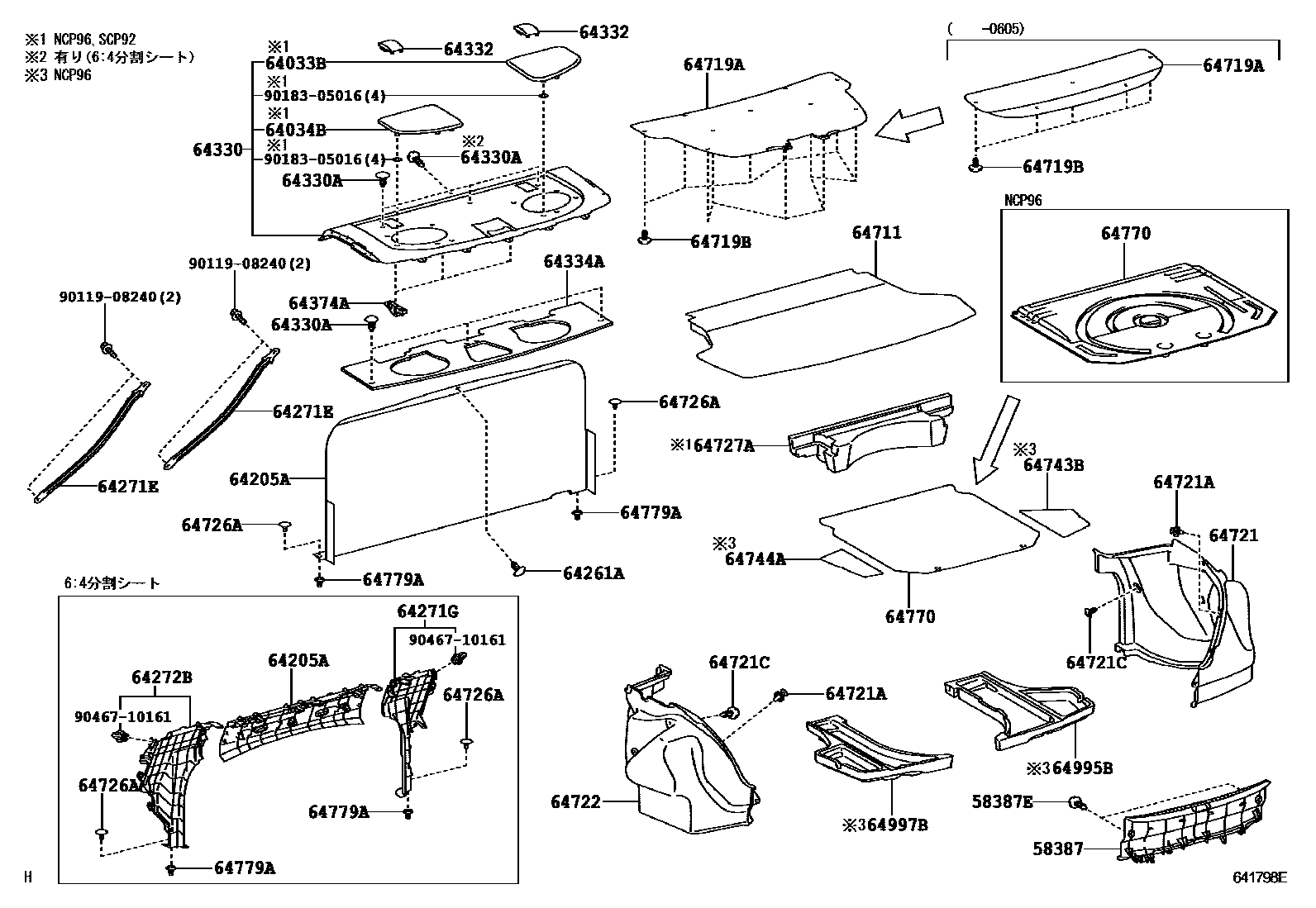

Toyota BELTA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
DK.GRAY,TRIM4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
DK.GRAY
BLACK
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
GREGE,TRIM4#
64205ACOVER SUB-ASSY, ROOM PARTITION
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
64261ACLIP(FOR ROOM PARTITION GARNISH)
DK.GRAY
64271EPANEL, ROOM PARTITION
64271GBOARD, ROOM PARTITION, RH
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
64272BBOARD, ROOM PARTITION, LH
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
GREGE,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64332COVER, PACKAGE TRAY TRIM
GREGE,TRIM4#
64334APAD, PACKAGE TRAY TRIM
64374ASUPPORT, PACKAGE TRAY TRIM
64711MAT, LUGGAGE COMPARTMENT FLOOR
DARK GRAY,TRIM4#
DARK GRAY,TRIM4#
DARK GRAY,TRIM4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721CCLIP(LUGGAGE COMPARTMENT)
DK.GRAY
BLACK
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM4#
64726ACLIP, LUGGAGE TRIM, REAR
DK.GRAY,TRIM4#
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64743BDOOR, DECK SIDE BOX, RH
64744ADOOR, DECK SIDE BOX, LH
64770COVER ASSY, SPARE WHEEL
64779ASTOPPER, SPARE WHEEL COVER
64995BBOX, DECK FLOOR, RH
64997BBOX, DECK FLOOR, LH
9011908240
main90119-08240
9018305016
main90183-05016
9046710161
main90467-10161
32 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota BELTA
This section contains 32 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota BELTA. Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, COVER SUB-ASSY, ROOM PARTITION.
