Toyota BELTA — METER

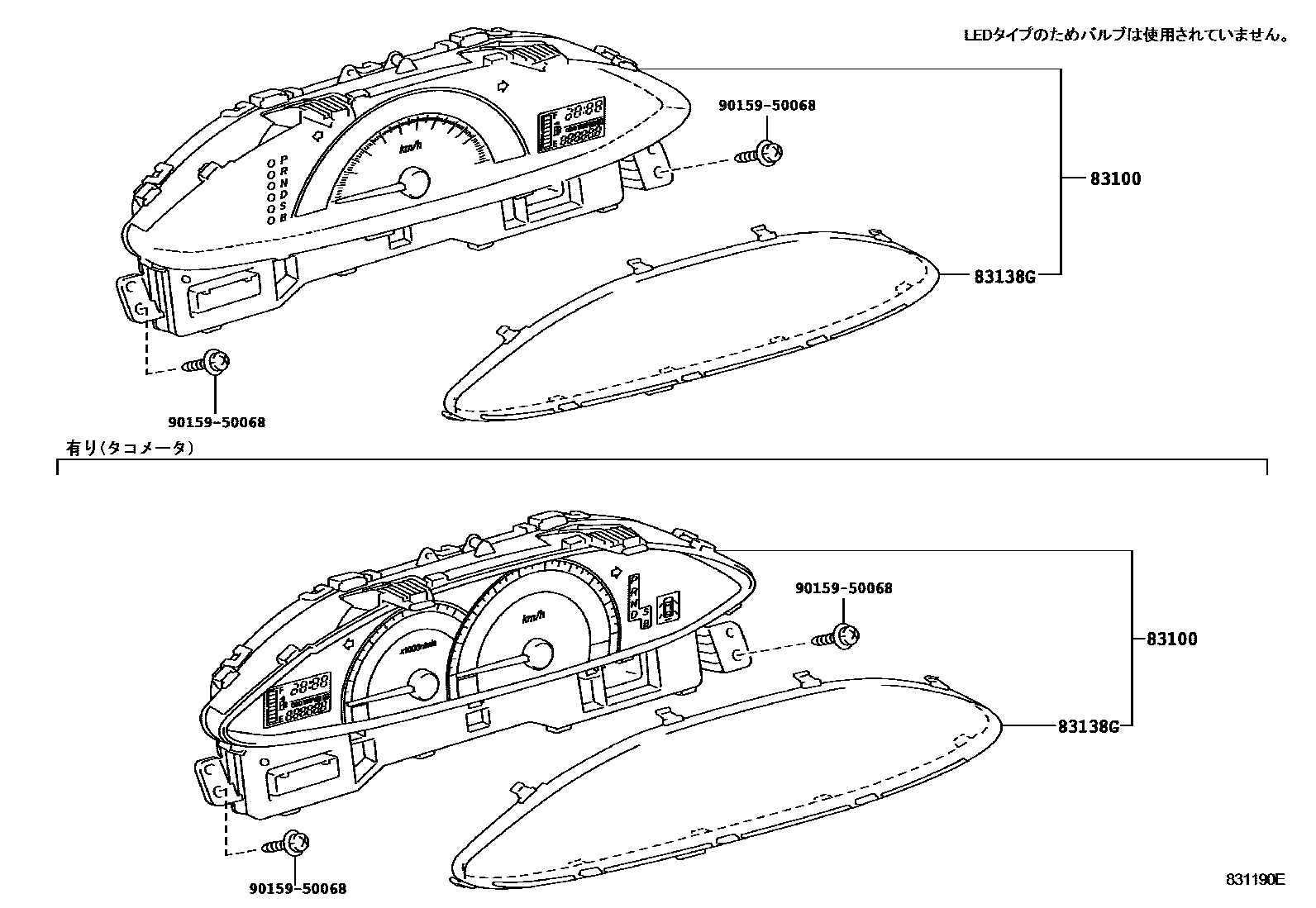

Parts diagram

83100METER ASSY, COMBINATION

main83800-52E40i200511-200708

main83800-52E41i200708-200808

main83800-52E50i200511-200708

main83800-52E60i200511-200708

main83800-52E61i200708-200808

main83800-52E70i200511-200708

main83800-52E71i200708-200808

main83800-52E71i200708-200808

main83800-52L51i200708-200808

main83800-52L51i200708-200808

main83800-52R40i200808-201206

main83800-52R50i200808-201206

main83800-52R60i200808-201206

main83800-52R60i200808-201206

main83800-52R70i200808-201206

main83800-52R70i200808-201206

83138GGLASS, COMBINATION METER

main83852-52E40i200511-201206

main83852-52R60i200808-201206

9015950068

main90159-50068

3 parts on this diagram · 1 diagram in section
