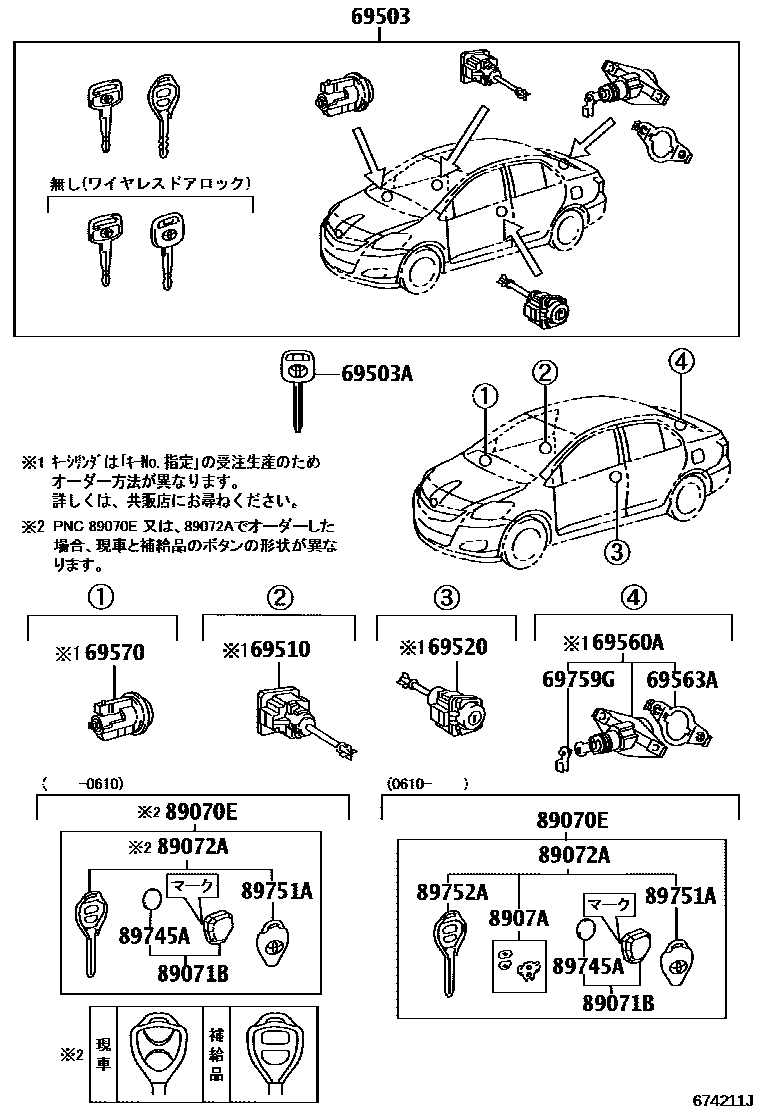

Toyota BELTA — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-52C30supersedes 69005-52C21i200808-201206

main69005-52F20i200808-201006

69503AKEY, BLANK

main90999-00186i200511-200808

main90999-00199i200511-200808

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-52130i200511-200808

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-52130i200808-201206

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-52260i200511-200808

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-52060i200511-200808

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-52080i200511-200808

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080i200610-200808

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-52710supersedes 89070-68130i200511-200609

main89070-52820supersedes 89070-68130i200808-201001

main89070-68130i201002-201206

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52120supersedes 89071-68030i200511-200610

main89071-52200supersedes 89071-68030i200610-200808

main89071-68030i201002-201206

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-52420i200511-200808

8907ASWITCH SET, TRANSMITTER

main8907A-71010i200610-200808

89745ABATTERY, TRANSMITTER

main89745-71010i200511-200808

89751ACOVER, TRANSMITTER HOUSING

main89751-52120supersedes 89751-52140i200511-200610

main89751-52140i200610-200808

89752ACASE, TRANSMITTER HOUSING

main89752-12080i200808-201206

15 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota BELTA

This section contains 18 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota BELTA. Key components include: CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, FRONT DOOR LOCK, LH.
