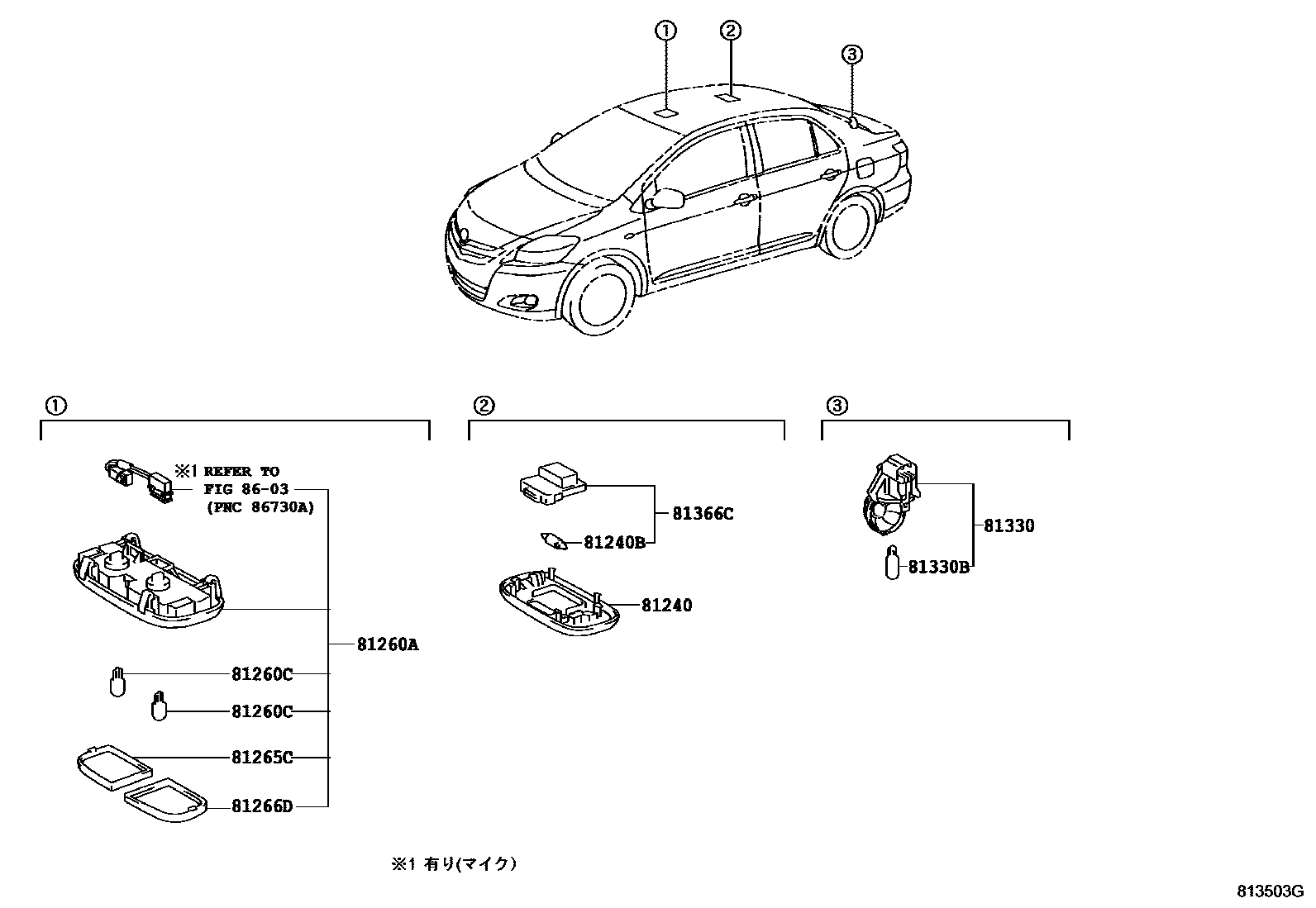

Toyota BELTA — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-E0i200808-201206

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200808-201206

81260ALAMP ASSY, MAP

main81260-52030-E0i200511-200808

GREGE,TRIM4#

main81260-52040-E0i200511-200808

main81260-52041-E0i200810-201111

81260CBULB(FOR MAP LAMP)

main90981-11062×2i200511-200808

81265CLENS, MAP LAMP, NO.1

main81265-52020i200511-200808

81266DLENS, MAP LAMP, NO.2

main81266-52020i200511-200808

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020i200511-200808

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i200511-200808

81366CBASE, ROOM LAMP SWITCH

main81366-68010i200511-200808

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

10 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota BELTA

This section contains 10 genuine Toyota parts for the INTERIOR LAMP system of the Toyota BELTA. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, MAP, BULB(FOR MAP LAMP), LENS, MAP LAMP, NO.1.
