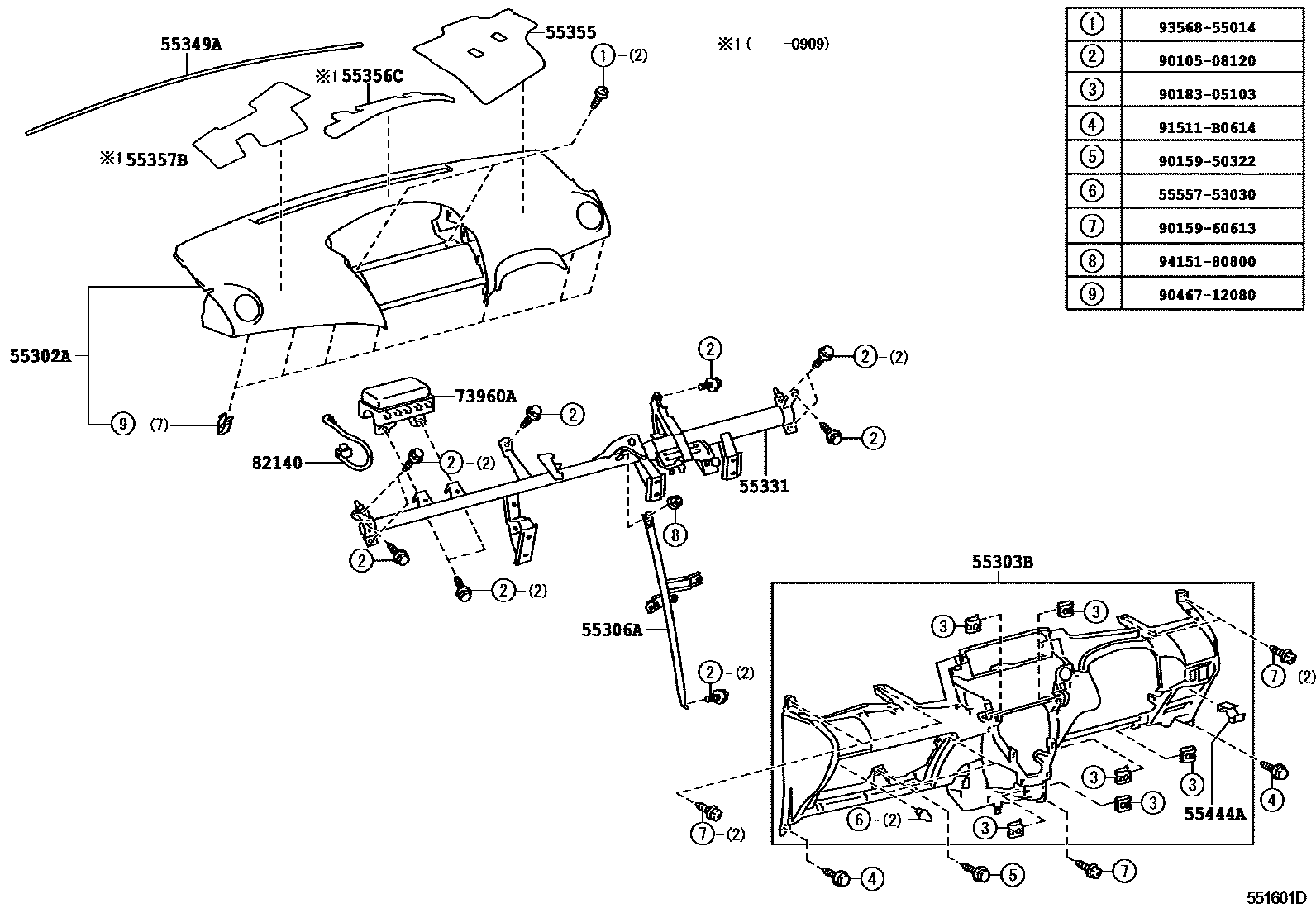

Toyota BELTA — INSTRUMENT PANEL & GLOVE COMPARTMENT

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52060-B0i200511-200607

DK.GRAY,TRIM4#

main55302-52061-B0i200608-200808

DK.GRAY,TRIM4#

main55302-52061-E0i200808-201110

ASH BROWN,TRIM4#

main55302-52062-E0i201111-201206

ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52170-E0i200511-200808

GREGE,TRIM4#

main55303-52171-E0i201111-201206

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52180i200808-201206

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52460i200511-200808

main55330-52461i200905-201206

55349ACUSHION, INSTRUMENT PANEL

main55349-52060i200808-201206

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52140i200808-201206

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52140i200808-200909

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52120i200808-200909

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52260i200808-201206

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52070i200511-200808

82140WIRE ASSY, INSTRUMENT PANEL

main82140-52020i200511-200808

5555753030BRACKET, LUGGAGE DOOR OPENING VALVE

main55557-53030

9010508120

main90105-08120

9015950322

main90159-50322

9015960613

main90159-60613

9018305103

main90183-05103

9046712080

main90467-12080

91511B0614

main91511-B0614

9356855014

main93568-55014

9415180800

main94151-80800

20 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota BELTA

This section contains 56 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota BELTA. Key components include: STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, PANEL SUB-ASSY, INSTRUMENT, LOWER, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, REINFORCEMENT, INSTRUMENT PANEL.
