Toyota BELTA — HEATING & AIR CONDITIONING - COMPRESSOR

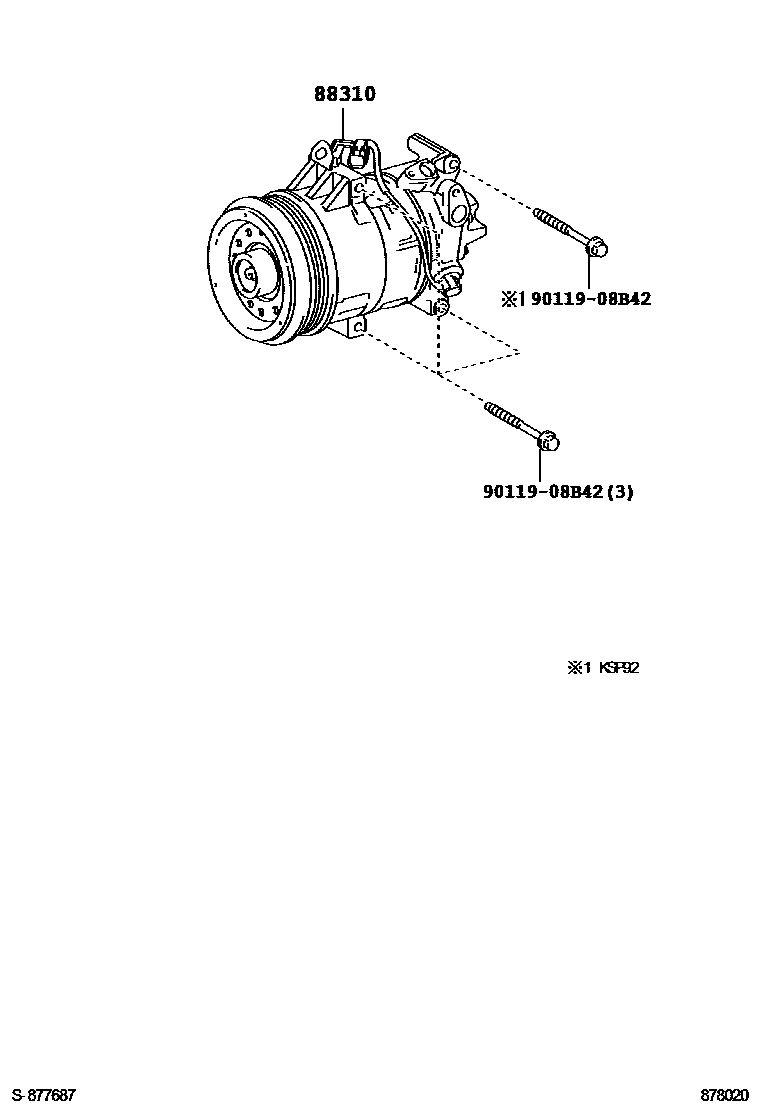

88310COMPRESSOR ASSY, W/PULLEY

main88310-52510i200511-200607

main88310-52511i200607-200808

main88310-52550i200511-200607

main88310-52551i200607-200808

main88310-52590i200511-200607

main88310-52591i200607-200701

main88310-52592i200702-200808

9011908B42

main90119-08B42

2 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota BELTA

This section contains 2 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota BELTA. Key components include: COMPRESSOR ASSY, W/PULLEY.
