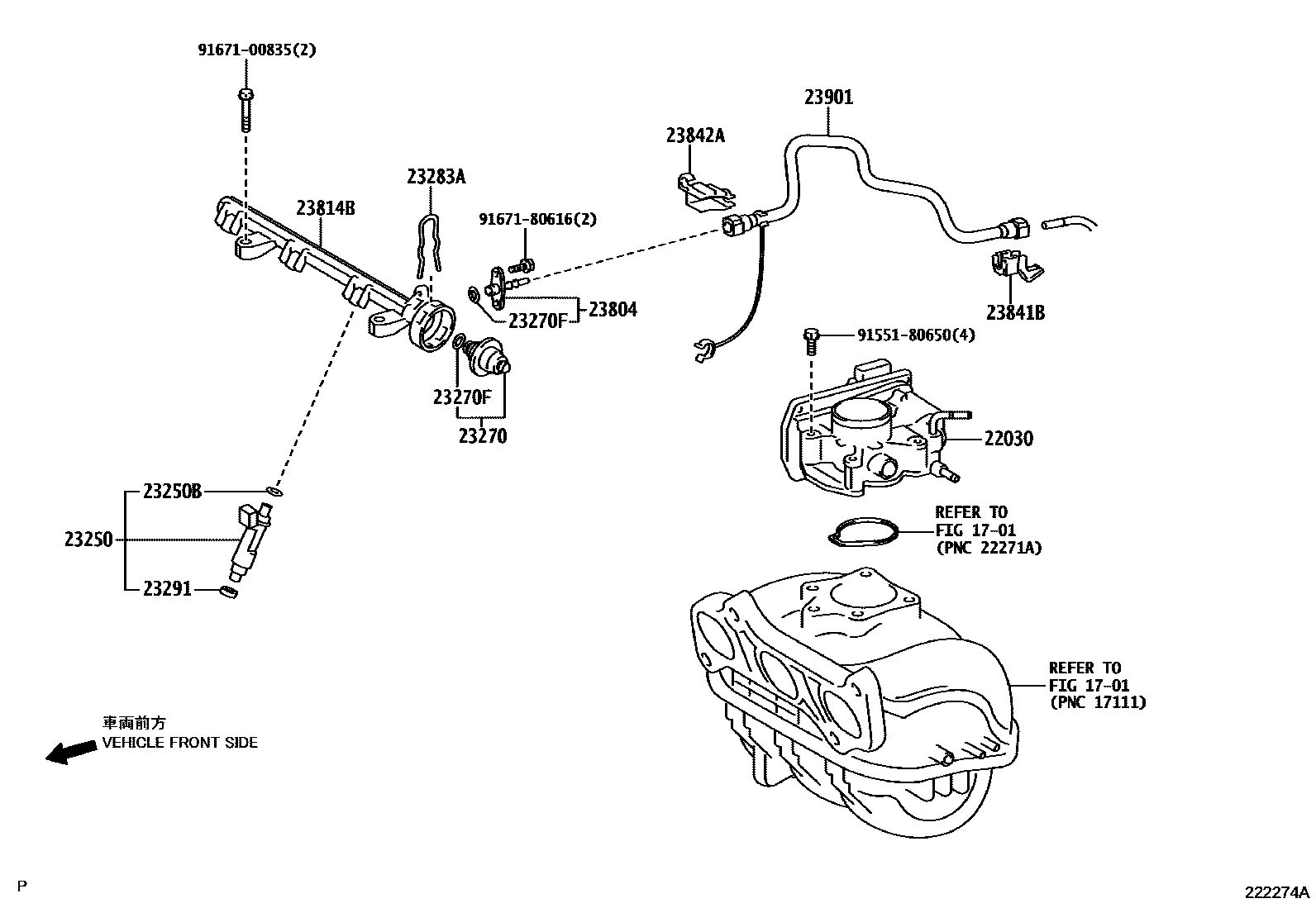

Toyota BELTA — FUEL INJECTION SYSTEM
1701MANIFOLD
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
23804PIPE SUB-ASSY, FUEL, NO.4
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
9155180650
main91551-80650
9167100835
main91671-00835
9167180616
main91671-80616
16 parts on this diagram · 3 diagrams in section
FUEL INJECTION SYSTEM for Toyota BELTA
This section contains 41 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota BELTA. Key components include: VENTILATION HOSE, RADIATOR & WATER OUTLET, MANIFOLD, VACUUM PIPING, VALVE ASSY, THERMOSTAT.
