Toyota BELTA — FRONT SPRING & SHOCK ABSORBER

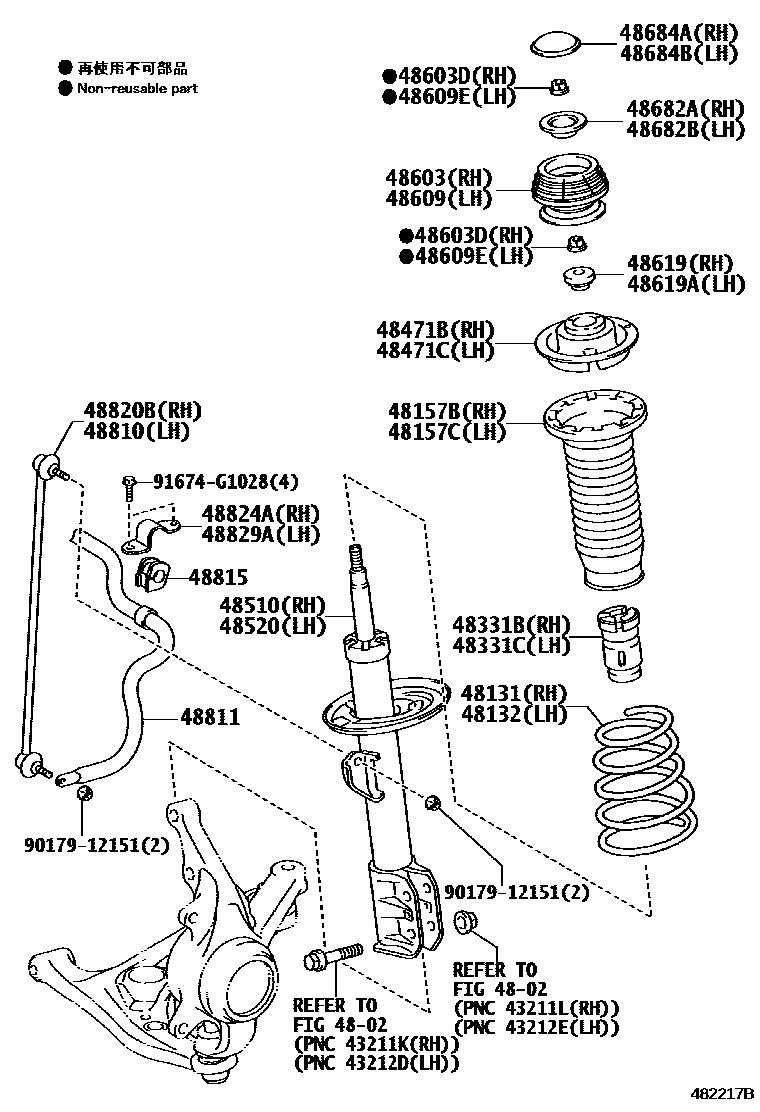

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-52A40i200511-201206
main48131-52A50i200511-201206
sub48131-52A51
main48131-52B10i200511-201206
sub48131-52M20
main48131-52B70i200511-201206
sub48131-52M30
48132SPRING, FRONT COIL, LH
main48131-52A40i200511-201206
main48131-52A50i200511-201206
sub48131-52A51
main48131-52B10i200511-201206
sub48131-52M20
main48131-52B70i200511-201206
sub48131-52M30
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-52030i200511-201206
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-52030i200511-201206
48331BBUMPER, FRONT SPRING, RH
main48331-52080i200511-201206
48331CBUMPER, FRONT SPRING, LH
main48331-52080i200511-201206
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-52030i200511-201206
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-52030i200511-201206
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-52C20i200511-201206
main48510-52C70i200511-201206
sub48510-52J51
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-52130i200511-201206
main48520-52180i200511-201206
sub48520-52651
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-52100i200511-201206
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90179-12145i200511-201206
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-52100i200511-201206
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90179-12145i200511-201206
48619BEARING, STRUT MOUNTING, RH
main48619-0D010i200511-200702
sub48619-0D011
main48619-0D011i200703-201206
48619ABEARING, STRUT MOUNTING, LH
main48619-0D010i200511-200702
sub48619-0D011
main48619-0D011i200703-201206
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
main48682-52040i200511-201206
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
main48682-52040i200511-201206
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-52020i200511-201206
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-52020i200511-201206
48810LINK ASSY, FRONT STABILIZER, LH
main48820-52030i200511-201206
48811BAR, STABILIZER, FRONT
main48811-52160i200511-201206
main48811-52180i200511-201206
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-52080i200511-201206
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-52030i200511-201206
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-52060i200511-201206
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-52060i200511-201206
9017912151
main90179-12151
91674G1028
main91674-G1028

29 parts on this diagram · 1 diagram in section
