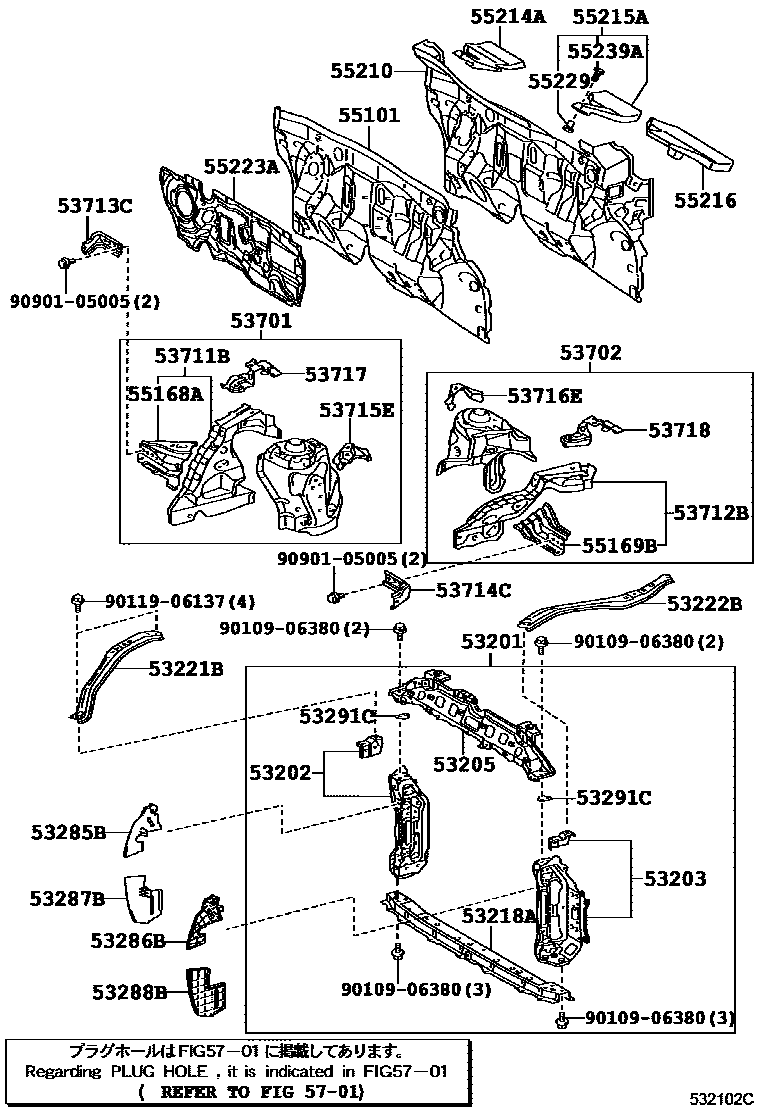

Toyota BELTA — FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-52230i200511-200808

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52902i200511-200808

main53202-52909i201010-201206

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52902i200511-200808

main53203-52907i201010-201206

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52100i200511-200808

53218ASUPPORT, RADIATOR, LOWER

main53028-52070i200511-200808

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-52020i200511-200808

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-52020i200511-200808

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52230i200511-200808

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52170i200511-200808

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52050i200511-200808

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52050i200511-200808

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-52070×2i200511-200808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52180i200511-200808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52180i200511-200808

53711BAPRON, FRONT FENDER, FRONT RH

main53707-52030i200511-200808

main53707-52060i201108-201206

53712BAPRON, FRONT FENDER, FRONT LH

main53708-52030i200511-200808

main53708-52060i201108-201206

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52030i200511-200808

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52040i200511-200808

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030i200511-200808

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030i200511-200808

53717PLATE, FENDER APRON, RH

main53717-52100i200511-200808

53718PLATE, FENDER APRON, LH

main53718-52100i200511-200808

55101PANEL SUB-ASSY, DASH

main55101-52521i200511-200808

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130i200511-200808

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130i200511-200808

55210INSULATOR ASSY, DASH PANEL

main55210-52220i200511-200604

main55210-52221i200605-200808

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-52130i200511-200808

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-52100i200511-200606

main55215-52101i200607-200808

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-52010i200511-200808

55223AINSULATOR, DASH PANEL, OUTER

main55223-52080i200511-200808

main55223-52100i200808-201206

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-48010i200511-200808

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020i200511-200808

5701HOLE PLUG

→ Go to FIG 57-01

9010906380

main90109-06380

9011906137

main90119-06137

9090105005

main90901-05005

36 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota BELTA

This section contains 36 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota BELTA. Key components include: SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT, RADIATOR, LOWER.
