Toyota BELTA — FRONT DOOR WINDOW REGULATOR & HINGE

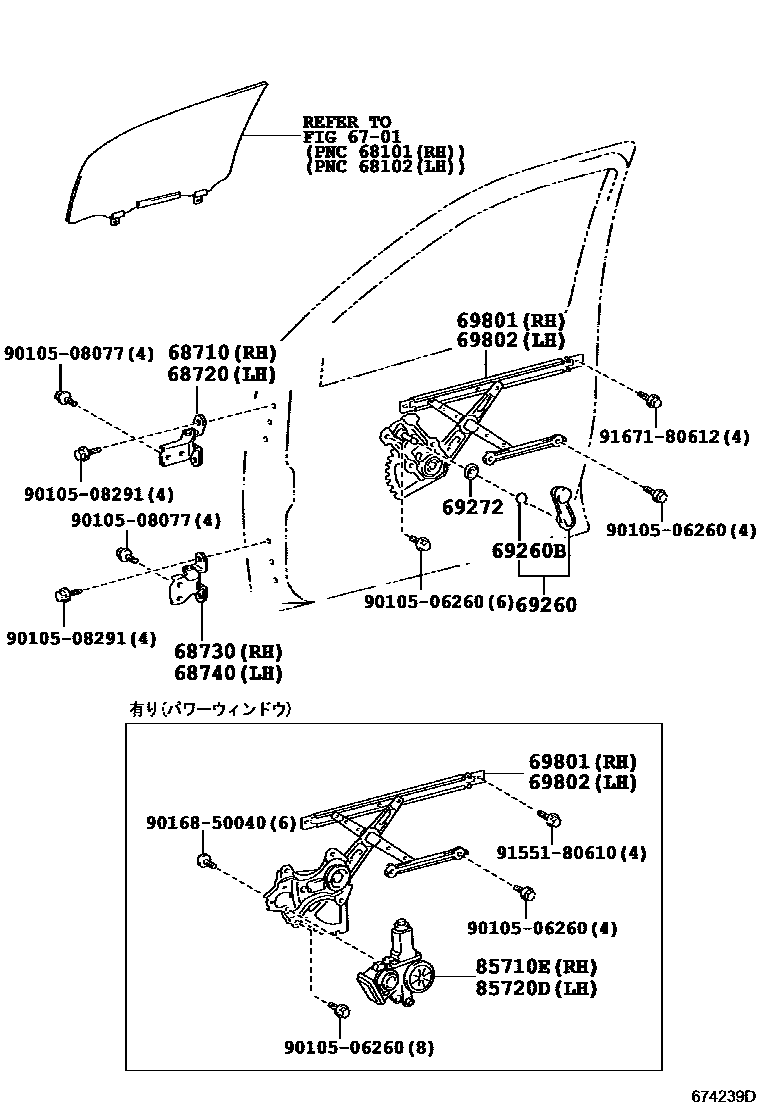

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150i200511-200609

main68710-12151i200610-200808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150i200511-200609

main68720-12151i200610-200808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020i200511-200609

main68730-33021i200610-200808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020i200511-200609

main68740-33021i200610-200808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-52070-B0×2i200610-200808

main69260-52070-E1×2i200808-201206

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2i200808-201206

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-52010×2i200808-201206

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52070i200808-201206

main69810-52380i200808-201206

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52070i200808-201206

main69820-52300i200610-200808

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52140i200511-200808

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140i200511-200808

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9155180610

main91551-80610

9167180612

main91671-80612

18 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota BELTA

This section contains 18 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota BELTA. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
