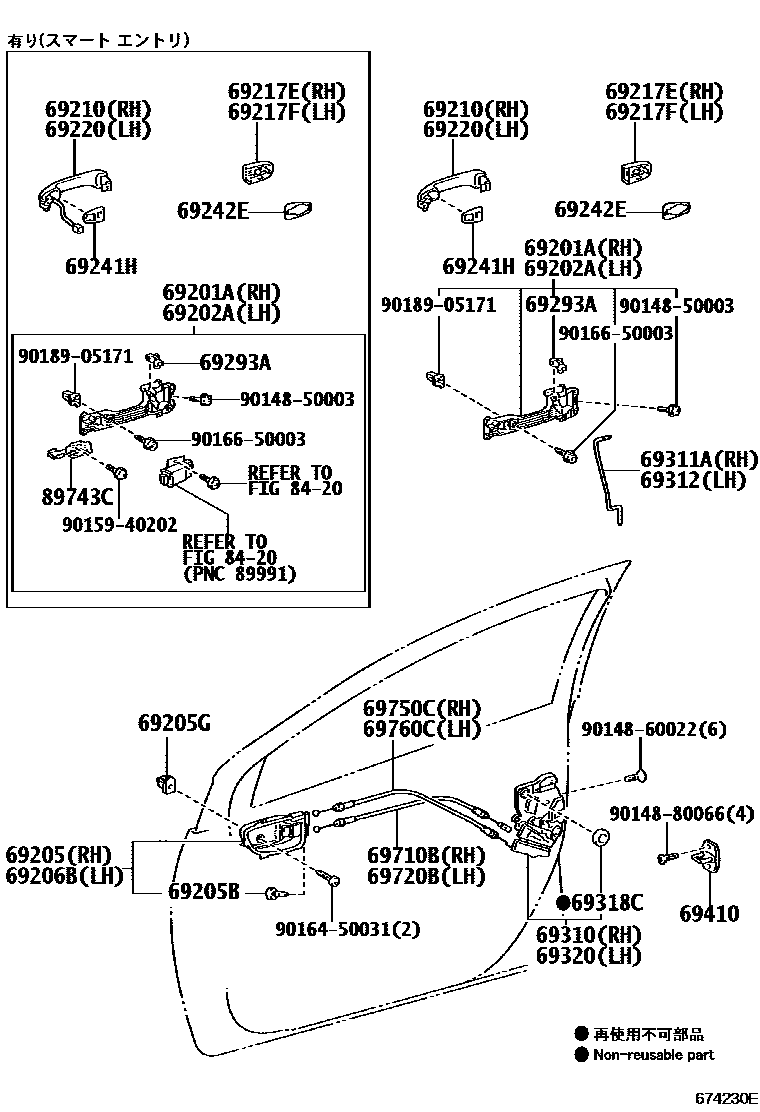

Toyota BELTA — FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69205GGROMMET(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,068
SUPER WHITE 2,040
SILVER M.M.,1E7
SILVER ME.,1F7
BLUE ME.,8N0
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
WHITE,068
LT.OLIVE ME.,6U4
TURQUOISE ME.,777
SILVER M.M.,1E7
DK.GRAY MC.,1E0
SILVER ME.,1F7
GRAYISH BLUE ME.,8R3
BLUE ME.,8N0
RED M.M.,3R3
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE,068
SILVER M.M.,1E7
SILVER ME.,1F7
BLUE ME.,8N0
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,068
SUPER WHITE 2,040
SILVER M.M.,1E7
SILVER ME.,1F7
BLUE ME.,8N0
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450031
main90164-50031
9016650003
main90166-50003
9018905171
main90189-05171
32 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota BELTA
This section contains 32 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota BELTA. Key components include: FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), GROMMET(FOR FRONT DOOR INSIDE HANDLE).
