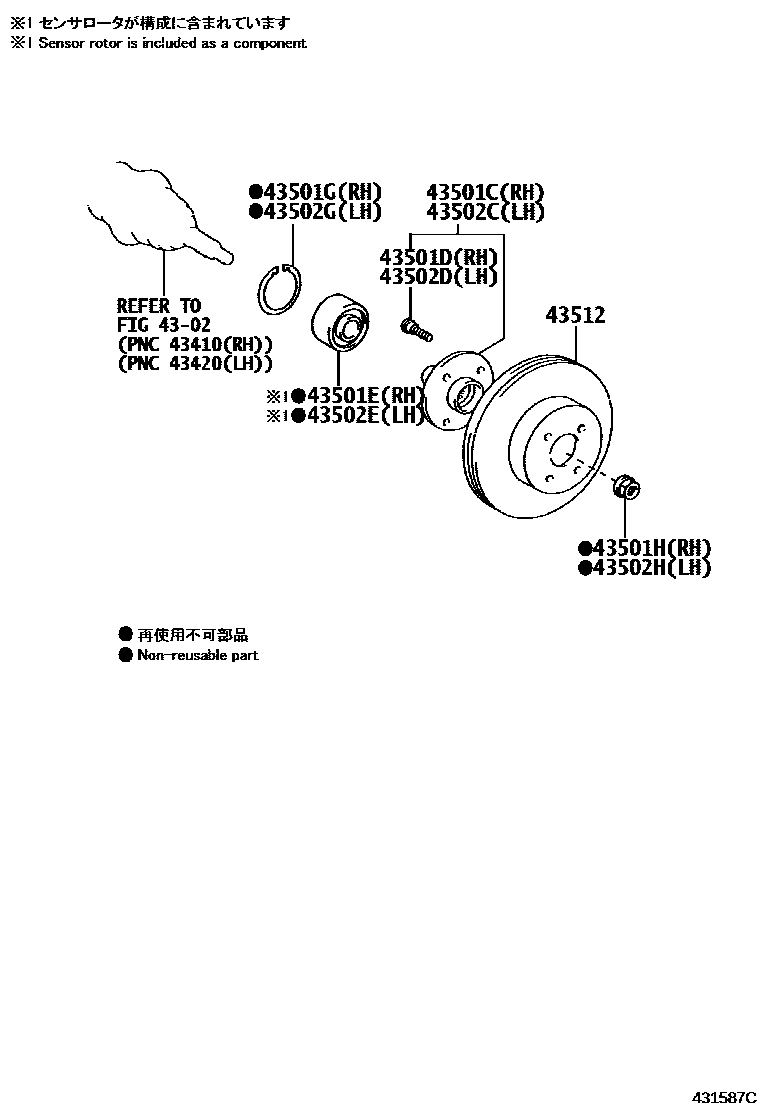

Toyota BELTA — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030iKSP92,NCP96,SCP92200511-201206

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKSP92,NCP96,SCP92200511-201206

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iKSP92,NCP96,SCP92200511-201206

sub90369-40009

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iKSP92,NCP96,SCP92200511-201206

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKSP92,NCP96,SCP92200511-201206

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030iKSP92,NCP96,SCP92200511-201206

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iKSP92,NCP96,SCP92200511-201206

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iKSP92,NCP96,SCP92200511-201206

sub90369-40009

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iKSP92,NCP96,SCP92200511-201206

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKSP92,NCP96,SCP92200511-201206

43512DISC, FRONT

main43512-52120iKSP92,NCP96,SCP92200511-201206

12 parts on this diagram · 1 diagram in section
