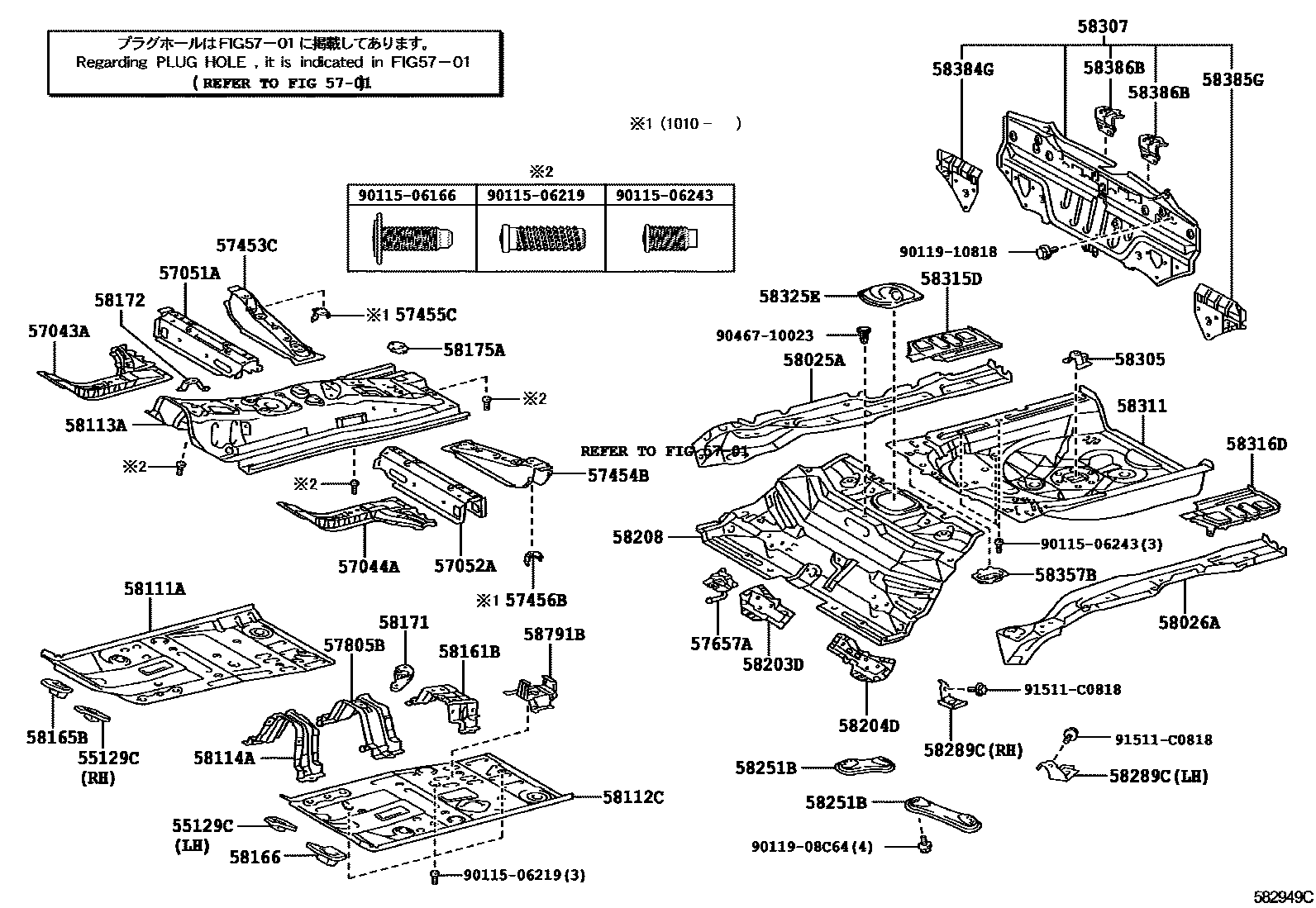

Toyota BELTA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55129CCOVER, DASH PANEL HOLE

main55129-52050iKSP92,NCP96,SCP92200808-200911

main55129-52051iKSP92,NCP96,SCP92200912-201206

main55139-52020iKSP92,NCP96,SCP92200808-200911

main55139-52021iKSP92,NCP96,SCP92200912-201206

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52020iKSP92,NCP96,SCP92200511-200808

main57043-52021iKSP92,NCP96,SCP92201009-201206

sub57043-52022

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52040iKSP92,NCP96,SCP92200808-201008

main57044-52041iKSP92,NCP96,SCP92201009-201206

sub57044-52042

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52010iKSP92,NCP96,SCP92200511-200808

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52010iKSP92,NCP96,SCP92200511-200808

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-52020iKSP92,NCP96,SCP92200511-200808

main57453-52021iKSP92,SCP92201010-201101

sub57453-52022

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-52010iKSP92,NCP96,SCP92200511-200808

main57454-52011iKSP92,SCP92201010-201101

sub57454-52012

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-52040iKSP92,SCP92201010-201101

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-52040iKSP92,SCP92201010-201101

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-52010iKSP92,SCP92200511-200808

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52130iKSP92,SCP92200511-200808

main57805-52131iKSP92,SCP92201010-201206

main57805-52140iNCP96200808-201009

main57805-52141iNCP96201010-201206

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52030iKSP92,NCP96,SCP92200511-200808

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52040iKSP92,NCP96,SCP92200511-200808

58111APAN, FRONT FLOOR, RH

main58111-52170iKSP92,NCP96,SCP92200511-200808

58112CPAN, FRONT FLOOR, LH

main58112-52904iKSP92,NCP96,SCP92200808-201206

sub58112-52921

58113APANEL, FRONT FLOOR, CENTER

main58113-52904iKSP92,SCP92200808-201010

main58113-52905iNCP96200511-200808

sub90950-01959

main58113-52914iNCP96201004-201206

main58113-52915iKSP92,SCP92201010-201206

sub58113-52924

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52070iKSP92,SCP92200511-200808

main58114-52071iKSP92,SCP92201010-201206

main58114-52080iNCP96200808-201009

main58114-52081iNCP96201010-201206

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52070iKSP92,SCP92201010-201206

main58161-52090iKSP92,SCP92200511-200808

58165BCOVER, FRONT FLOOR, RH

main58165-52010iKSP92,NCP96,SCP92200511-200808

main58165-52011iKSP92,NCP96,SCP92200912-201206

58166COVER, FRONT FLOOR, LH

main58166-52010iKSP92,NCP96,SCP92200511-200808

main58166-52011iKSP92,NCP96,SCP92200912-201206

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090iKSP92,SCP92200511-200808

main58171-52120iNCP96200511-200808

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iKSP92,SCP92200511-200808

main58172-52030iNCP96200511-200808

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iKSP92,NCP96,SCP92200511-200808

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-52060iKSP92,SCP92200511-200808

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-52060iKSP92,SCP92200511-200808

main58204-52061iKSP92,SCP92201008-201206

58208PAN, CENTER FLOOR

main58211-52190iKSP92,SCP92200511-200808

main58211-52230iNCP96200511-200808

58251BBRACE, FLOOR PANEL, FRONT

main58251-52020×2iKSP92,NCP96,SCP92200511-200808

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-52030iKSP92,SCP92200808-201009

main58289-52040iNCP96200511-200808

main58289-52080iKSP92,SCP92201010-201206

main58299-52060iKSP92,SCP92200808-201009

main58299-52070iNCP96200808-201206

main58299-52100iKSP92,SCP92201010-201206

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-52070iKSP92,NCP96,SCP92200511-200808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52470iKSP92,SCP92200511-200612

main58307-52471iKSP92,SCP92200808-201206

main58307-52480iNCP96200511-200612

main58307-52481iNCP96200701-200808

58311PAN, REAR FLOOR

main58311-52210iKSP92,SCP92200808-201206

main58311-52220iNCP96200511-200808

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52170iKSP92,NCP96,SCP92200511-200808

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52190iKSP92,NCP96,SCP92200511-200808

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52050iKSP92,SCP92200511-200808

main58325-52060iNCP96200511-200808

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-52040iNCP96200511-200808

main58357-52041iNCP96201105-201206

58384GGUSSET, LOWER BACK, UPPER RH

main58384-52090iKSP92,NCP96,SCP92200511-200808

58385GGUSSET, LOWER BACK, UPPER LH

main58385-52080iKSP92,NCP96,SCP92200511-200808

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-52040×2iKSP92,NCP96,SCP92200511-200808

58791BCARRIER, JACK

main58791-52060iKSP92,NCP96,SCP92200511-200808

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

9011908C64

main90119-08C64

9011910818

main90119-10818

9046710023

main90467-10023

91511C0818

main91511-C0818

47 parts on this diagram · 2 diagrams in section
