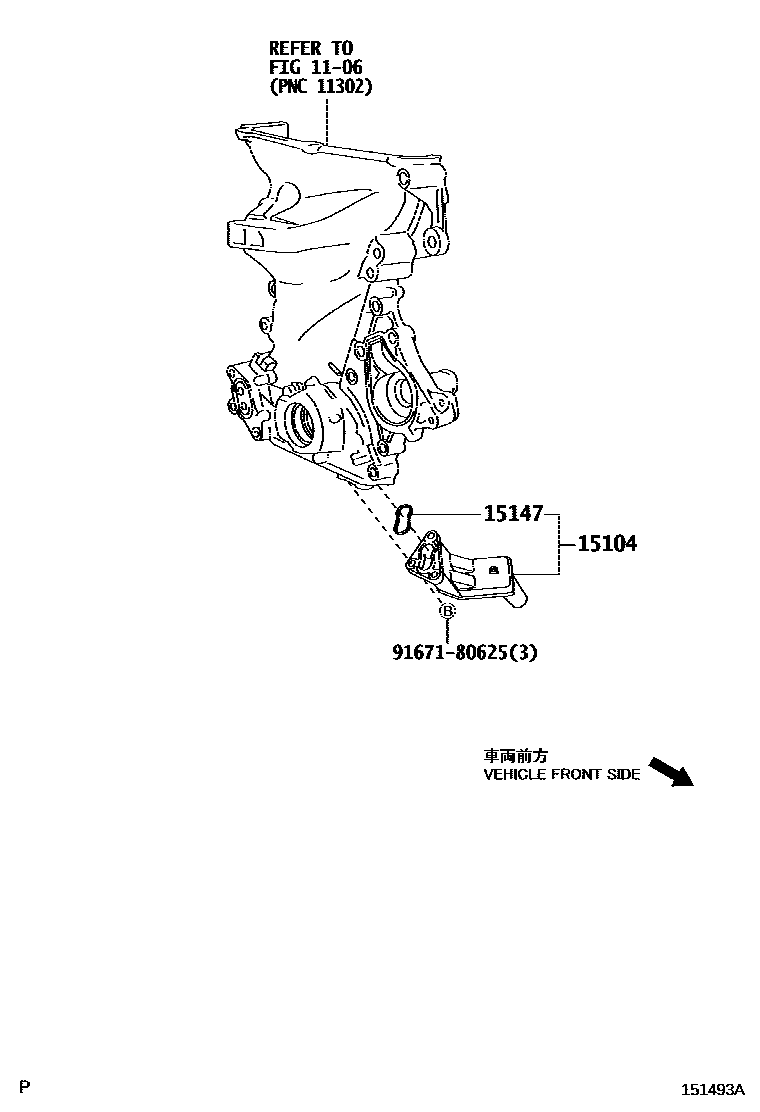

Toyota BELTA — ENGINE OIL PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-21021i200511-200612

main15104-21022i200612-200808

main15104-23070i200511-200808

main15104-40030i200808-201007

main15104-40050i201007-201206

15147GASKET, OIL STRAINER

main15147-23020i200808-201206

main15147-40030i200511-200808

9167180625

main91671-80625

4 parts on this diagram · 3 diagrams in section

ENGINE OIL PUMP for Toyota BELTA

This section contains 28 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota BELTA. Key components include: TIMING GEAR COVER & REAR END PLATE, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), SEAL(FOR OIL PUMP), SENSOR, CRANK POSITION.
