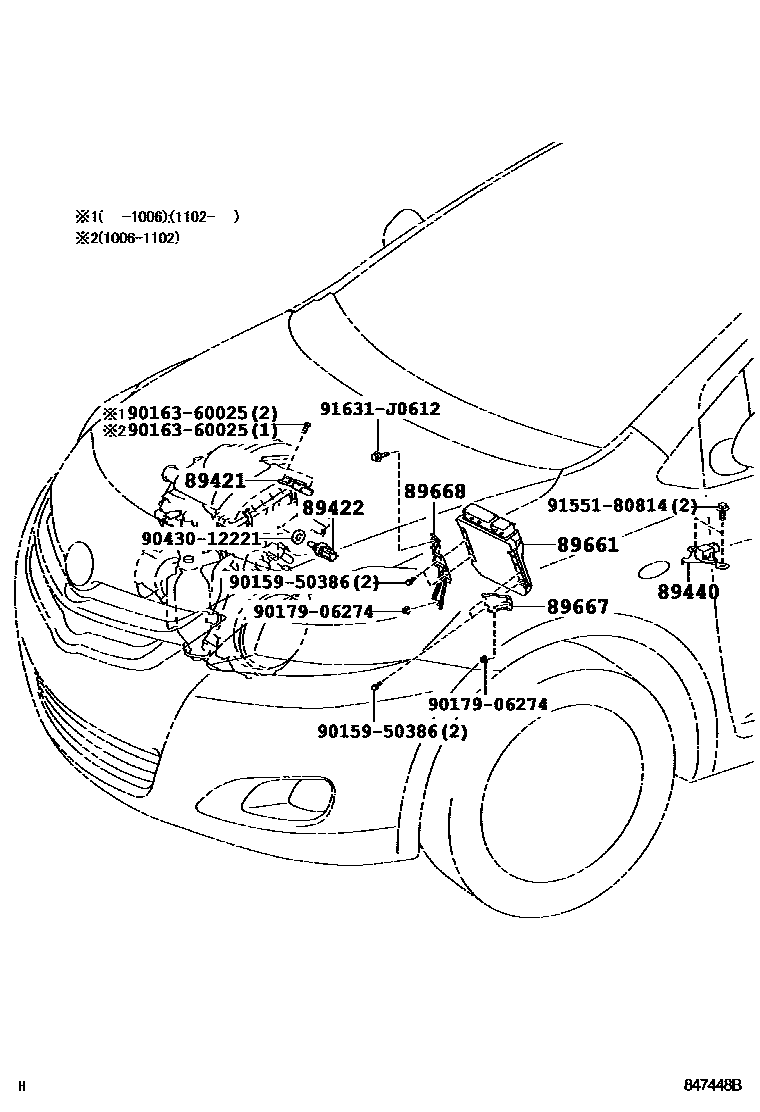

Toyota BELTA — ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89440SENSOR ASSY, DECELERATION
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9015950386
main90159-50386
9016360025
main90163-60025
9017906274
main90179-06274
9043012221
main90430-12221
9155180814
main91551-80814
91631J0612
main91631-J0612
12 parts on this diagram · 3 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota BELTA
This section contains 14 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota BELTA. Key components include: SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, WATER TEMPERATURE (FOR E.F.I.), SENSOR ASSY, DECELERATION, COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER.
