Toyota BELTA — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-E0i200511-200808

GREGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-52030-E0i200511-200808

GREGE,TRIM4#

main58804-52031-E0i200905-201206

GREGE,TRIM4#

main58804-52050-E0i200808-201206

GREGE,TRIM4#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-52020-E0i200511-200604

GREGE,TRIM4#

main58805-52021-E0i200605-200808

GREGE,TRIM4#

main58805-52030-E0i200511-200808

GREGE,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-52060i200808-201006

sub58815-52061

main58815-52070i200511-200808

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-52120-E0i200511-200808

GREGE,TRIM4#

9015950384

main90159-50384

9046710203

main90467-10203

91631J0612

main91631-J0612

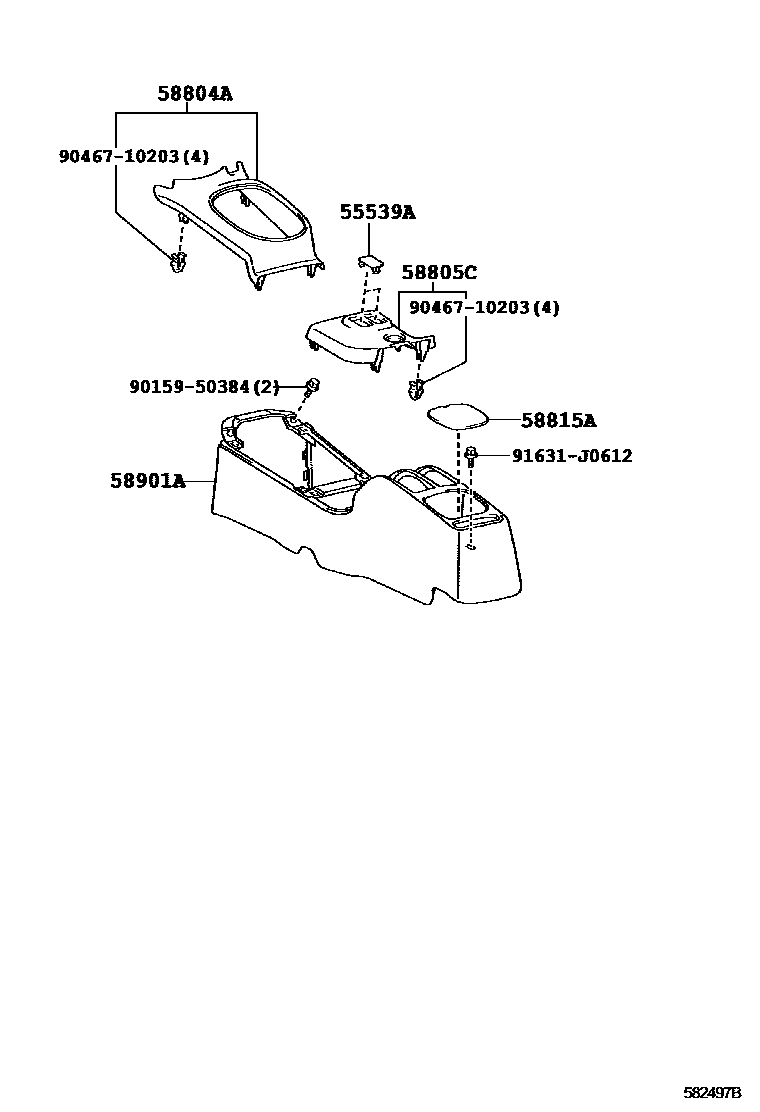

8 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota BELTA

This section contains 18 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota BELTA. Key components include: COVER, SPARE SWITCH HOLE, PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, UPPER REAR, CARPET, CONSOLE BOX, BOX SUB-ASSY, CONSOLE, REAR.
