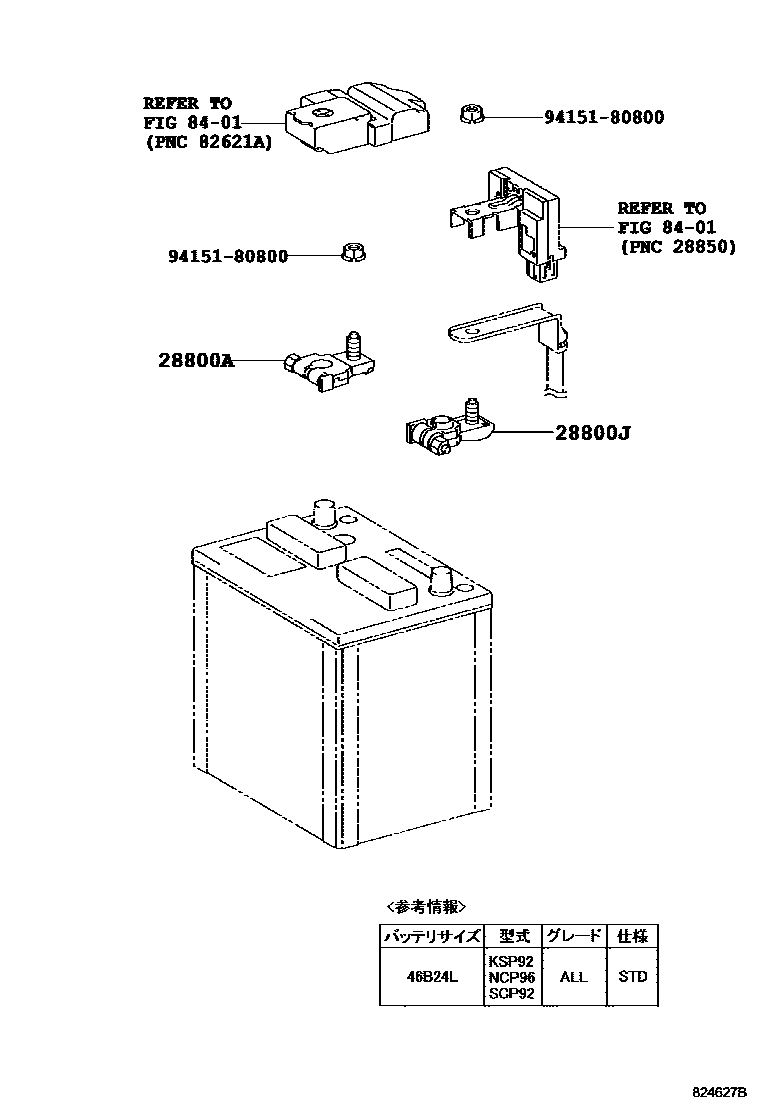

Toyota BELTA — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05055i200511-200808

main90982-05063i201010-201206

28800JTERMINAL, BATTERY NEGATIVE

main90982-06058i200511-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180800

main94151-80800

4 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota BELTA

This section contains 4 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota BELTA. Key components include: TERMINAL, BATTERY POSITIVE, TERMINAL, BATTERY NEGATIVE, SWITCH & RELAY & COMPUTER.
