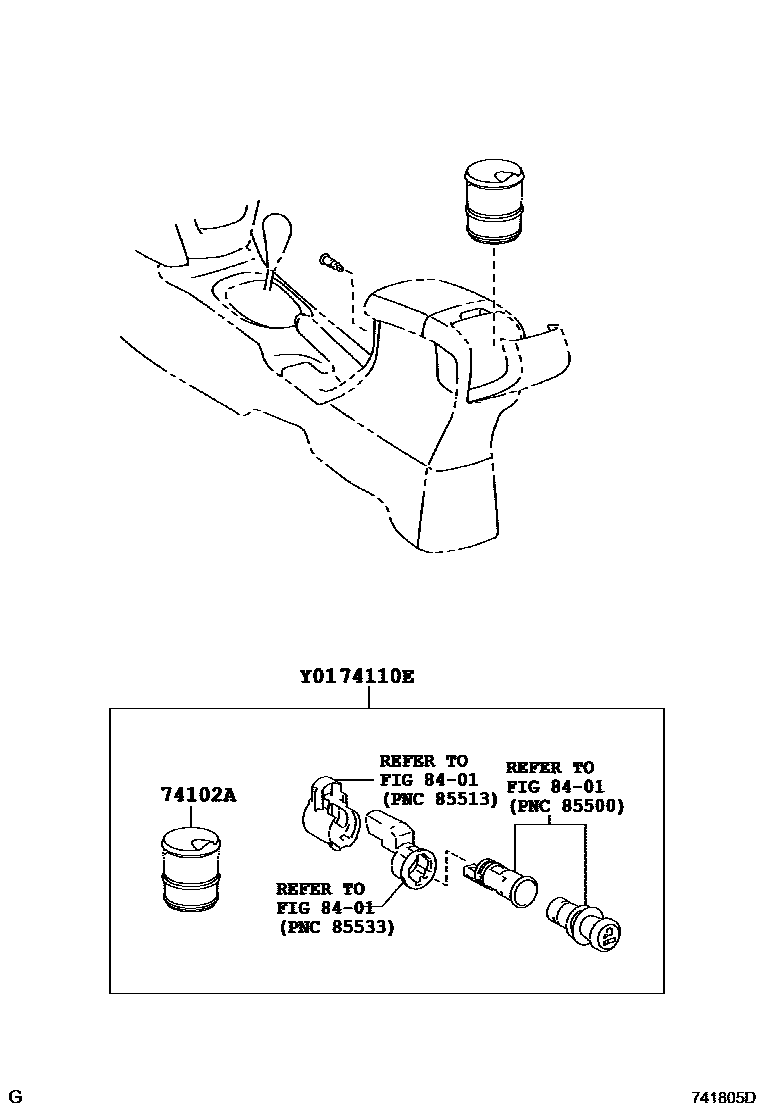

Toyota BELTA — ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74130-28040-C0i200511-200808

main74130-42010i201010-201206

74110ERECEPTACLE ASSY, FRONT ASH

main74110-52050i200511-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota BELTA

This section contains 3 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota BELTA. Key components include: RECEPTACLE ASSY, FRONT ASH, SWITCH & RELAY & COMPUTER.
