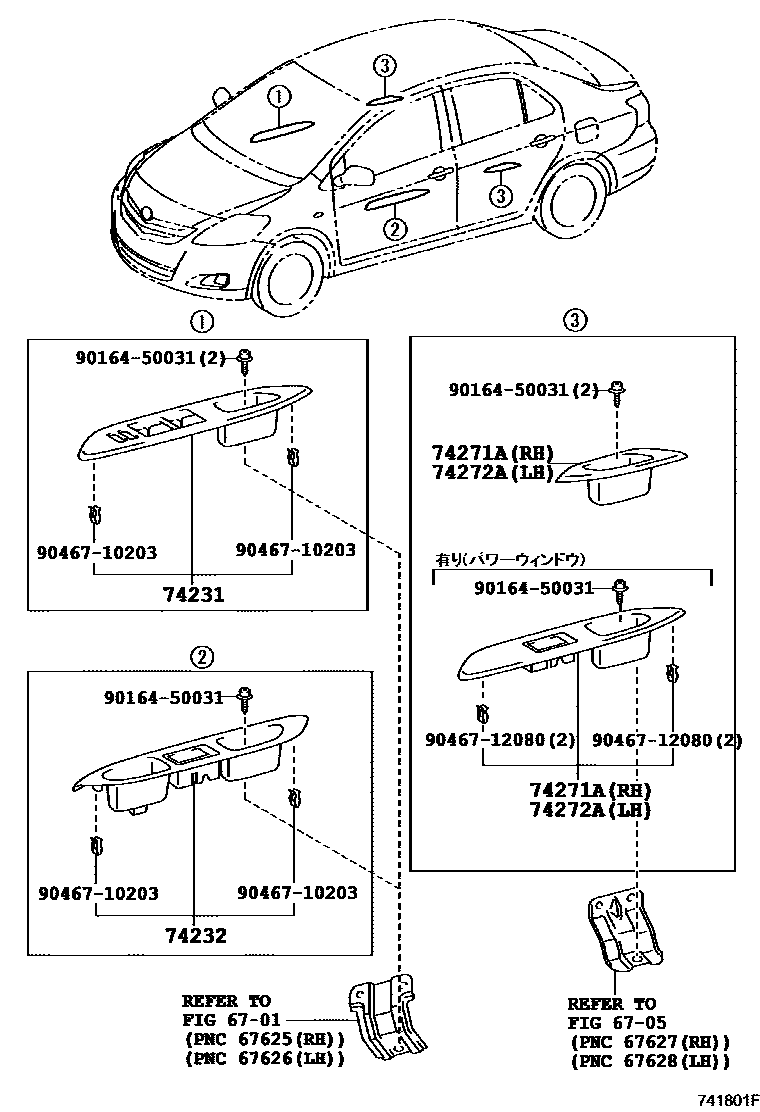

Toyota BELTA — ARMREST & VISOR

0001 1������ 0002 1����� & ����������

6701

6705

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52370-B0iKSP92,NCP96,SCP92200511-200808

DK.GRAY,TRIM4#

main74231-52500iKSP92,NCP96,SCP92200808-201206

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52290-B0iKSP92,NCP96,SCP92200511-200808

DK.GRAY,TRIM4#

main74232-52400iKSP92,NCP96,SCP92200808-201206

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-52100-B0iKSP92,NCP96,SCP92200511-200808

DK.GRAY,TRIM4#

sub74271-52130

main74271-52190iKSP92,NCP96,SCP92200808-201206

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-52090-B0iKSP92,NCP96,SCP92200511-200808

DK.GRAY,TRIM4#

sub74272-52120

main74272-52180iKSP92,NCP96,SCP92200808-201206

9016450031

main90164-50031

9046710203

main90467-10203

9046712080

main90467-12080

9 parts on this diagram · 2 diagrams in section
