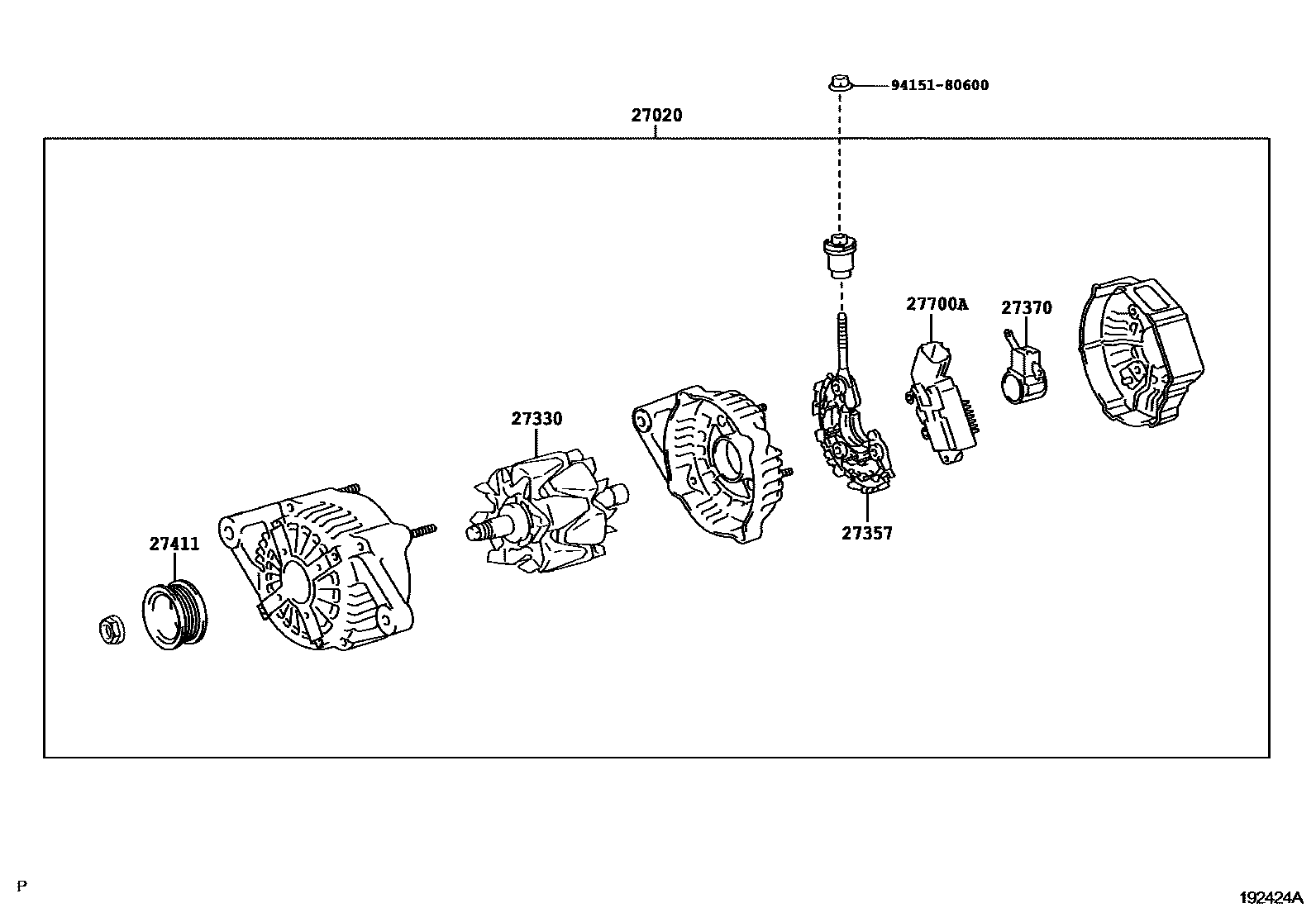

Toyota BELTA — ALTERNATOR

27020ALTERNATOR ASSY

main27060-21130i200808-200906

main27060-21131i200907-201206

main27060-23130i200511-200808

main27060-23131i200904-201206

main27060-40010i200808-200903

main27060-40011i200904-201206

27330ROTOR ASSY, ALTERNATOR

main27330-30130i200904-201206

main27330-62220i200511-200808

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i200511-200808

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i200511-200808

27411PULLEY, ALTERNATOR

main27411-22210i200808-201206

main27411-40080i200511-200808

main27411-70140i200511-200808

27700AREGULATOR ASSY, GENERATOR

main27700-23040i200511-200808

main27700-28080i200511-200808

9415180600

main94151-80600

7 parts on this diagram · 3 diagrams in section

ALTERNATOR for Toyota BELTA

This section contains 9 genuine Toyota parts for the ALTERNATOR system of the Toyota BELTA. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), ROTOR ASSY, ALTERNATOR, HOLDER, ALTERNATOR, W/RECTIFIER, HOLDER ASSY, ALTERNATOR BRUSH.
