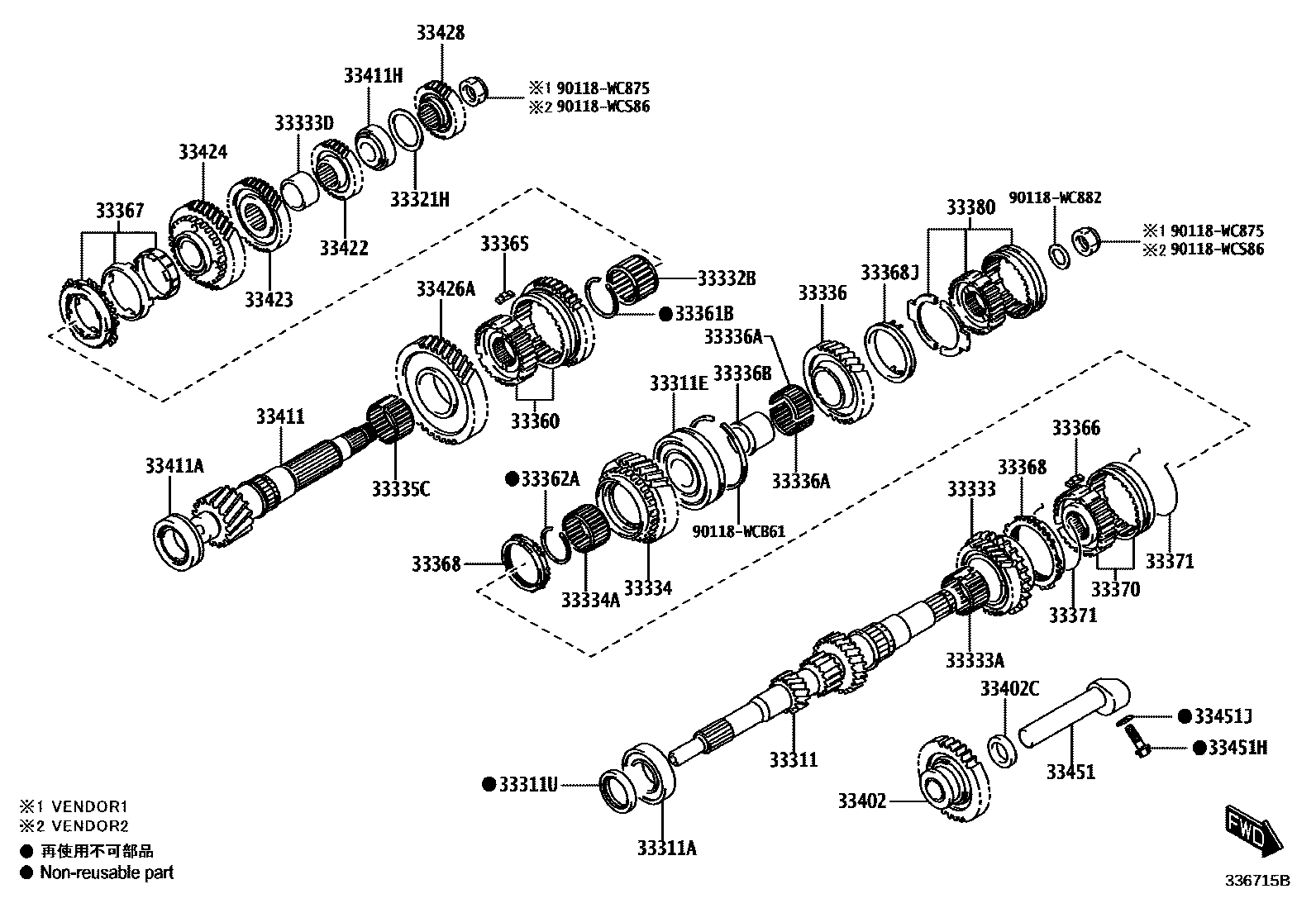

Toyota BELTA — TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311USEAL, OIL (FOR INPUT SHAFT)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333DSPACER (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-WC002
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33394-WC001
33367RING, SYNCHRONIZER, NO.1
main33367-WC003
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
33370HUB ASSY, SYNCHRONIZER, NO.2
main33370-WC001
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-WC001
33380HUB ASSY, SYNCHRONIZER, NO.3
main33380-WC001
33402CWASHER, PLATE (FOR REVERSE IDLER)
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33422GEAR, COUNTERSHAFT 4TH SPEED
main33422-WC004
33423GEAR, COUNTERSHAFT 3RD SPEED
main33423-WC003
33424GEAR, COUNTERSHAFT 2ND SPEED
main33332-WC002
33426AGEAR, COUNTERSHAFT, 1ST SPEED
33428GEAR, COUNTERSHAFT 5TH
main33428-WC004
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
90118WC875
main90118-WC875
90118WC882
main90118-WC882
90118WCB61
main90118-WCB61
90118WCS86
main90118-WCS86
43 parts on this diagram · 1 diagram in section
