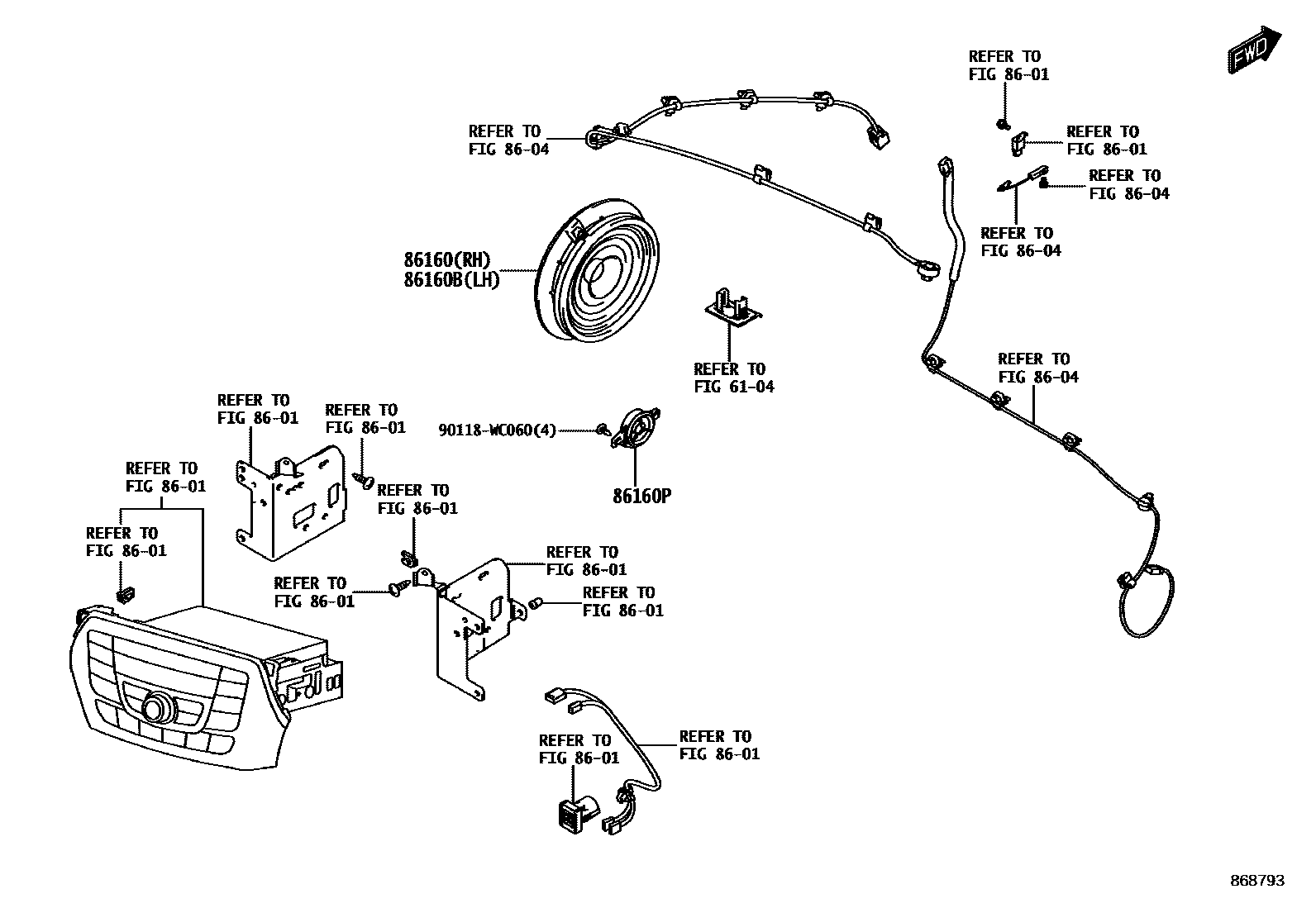

Toyota BELTA — SPEAKER

0001 1W/O(BACK CAMERA) 0002 1W(BACK CAMERA)

6104

8601

8604

86160SPEAKER ASSY, FRONT NO.1

main86160-WC003×2iK15B..SUD202205-202310

POS.28

86160BSPEAKER ASSY, REAR

main86160-WC003×2iK15B..SUD202205-202310

POS.28

86160PSPEAKER ASSY, FRONT NO.2

main86160-WC001×2iK15B..SUD202205-202310

POS.28

90118WC060

main90118-WC060

7 parts on this diagram · 2 diagrams in section
