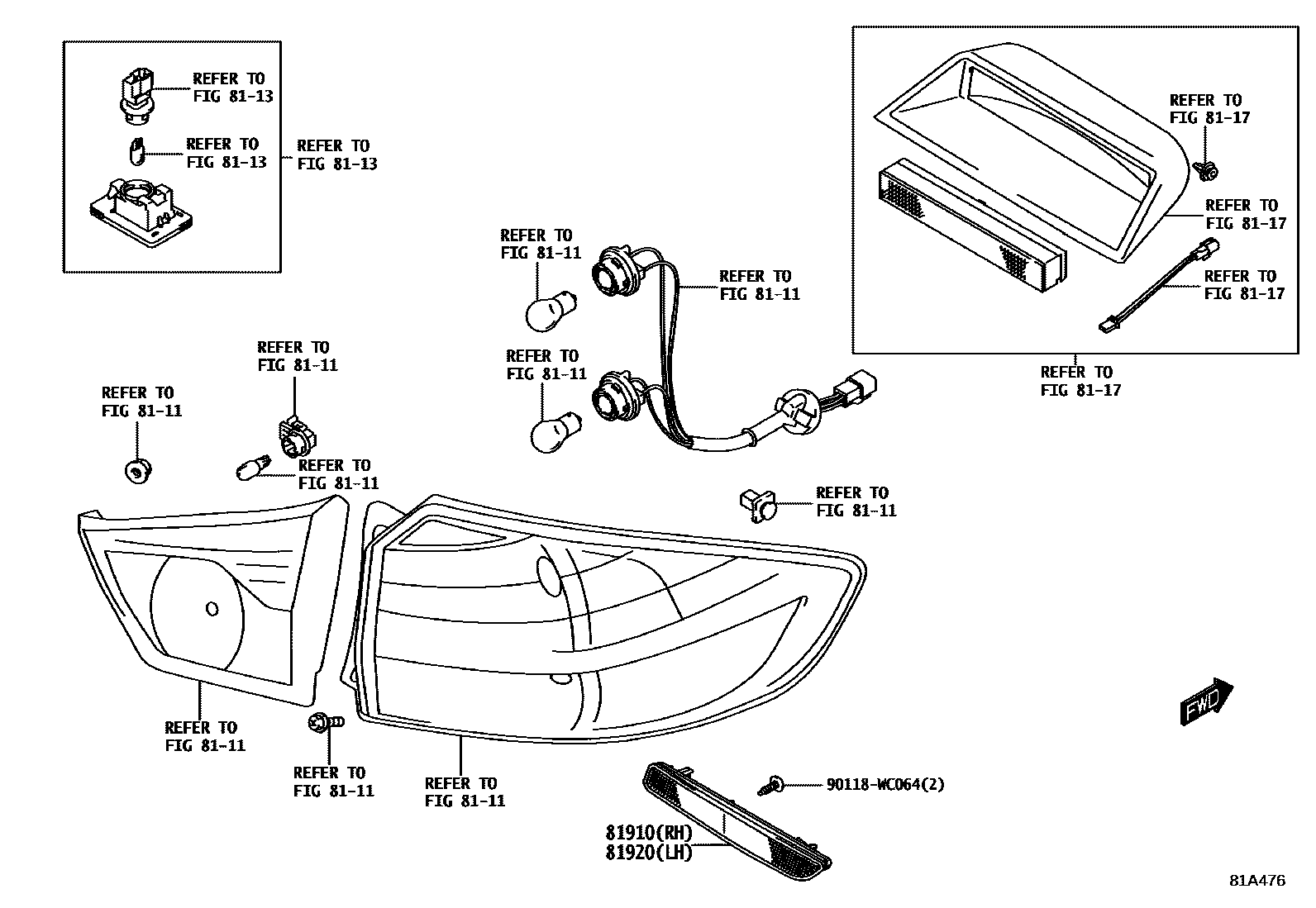

Toyota BELTA — REFLEX REFLECTOR

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8117CENTER STOP LAMP

→ Go to FIG 81-17

81910REFLECTOR ASSY, REFLEX, RH

main81910-WC001

81920REFLECTOR ASSY, REFLEX, LH

main81920-WC001

90118WC064

main90118-WC064

6 parts on this diagram · 2 diagrams in section

REFLEX REFLECTOR for Toyota BELTA

This section contains 6 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota BELTA. Key components include: REAR COMBINATION LAMP, REAR LICENSE PLATE LAMP, CENTER STOP LAMP, REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, LH.
